MAX5113 Datasheet - Maxim Integrated

MAX5113, 14-Bit Current DAC

The MAX5113 is a 14-bit, 9-channel, current-output digital-to-analog converter (DAC). The device operates from a low +3.0V power supply and provides 14-bit performance without any adjustment. The device’s output ranges are optimized to bias a highpower tunable laser source. Each of the 9 channels pr.

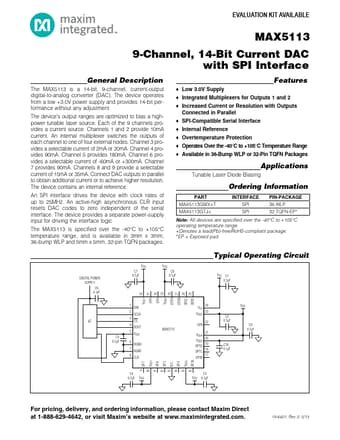

Datasheet Preview Page 1

MAX5113-MaximIntegrated.pdf

Preview of MAX5113 PDF
MAX5113 Datasheet Preview Page 2 MAX5113 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX5113

Manufacturer:

Maxim Integrated ↗

File Size:

7.90 MB

Description:

14-Bit Current DAC

MAX5113 Features

* S Low 3.0V Supply S Integrated Multiplexers for Outputs 1 and 2 S Increased Current or Resolution with Outputs Connected in Parallel S SPI-Compatible Serial Interface S Internal Reference S Overtemperature Protection S Operates Over the -40NC to +105NC Temperature Range S Available in 36-Bump WLP or
