MAX5116, MAX5115 - Nonvolatile - Quad 8-Bit DACs with 2-Wire Serial Interface

MAX5116 Description

19-3586; Rev 0; 2/05 www.DataSheet4U.com Nonvolatile, Quad, 8-Bit DACs with 2-Wire Serial Interface General .
The MAX5115/MAX5116 quad, 8-bit, digital-to-analog converters (DACs) feature nonvolatile registers.

MAX5116 Features

* Nonvolatile Registers Initialize DACs to Stored States
* +2.7V to +5.25V Single-Supply Operation
* Quad 8-Bit DACs with Independent High and Low Reference Inputs
* Rail-to-Rail Output Buffers
* Low 200µA per DAC Supply Current
* Power-Down Mode Reduc

MAX5116 Applications

* Digital Gain and Offset Adjustments Programmable Attenuators Portable Instruments Power-Amp Bias Control ATE Calibration Laser Biasing SCL SDA A3 A2 A1 A0 MUTE 2-WIRE SERIAL INTERFACE/ CONTROL DAC1 NONVOLATILE/ VOLATILE REGISTERS DAC1 OUT1 DAC2 NONVOLATILE/ VOLATILE REGISTERS DAC2 OUT2 Pin Confi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX5116, MAX5115. Please refer to the document for exact specifications by model.

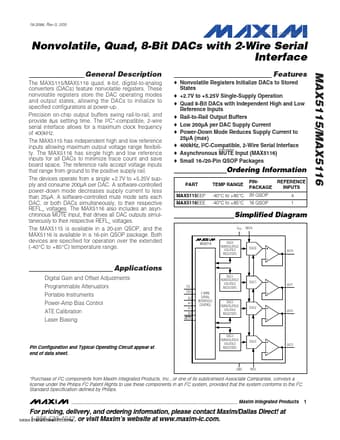

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX5116, MAX5115
Manufacturer
Maxim
File Size
494.45 KB
Datasheet
MAX5115_Maxim.pdf
Description
Nonvolatile - Quad 8-Bit DACs with 2-Wire Serial Interface
Note
This datasheet PDF includes multiple part numbers: MAX5116, MAX5115.
Please refer to the document for exact specifications by model.
