MAX5109 - 8-Bit DACs

Product Overview

Maxim Integrated Products

Datasheet Details

Part number	MAX5109
Manufacturer	Maxim Integrated Products
File Size	511.61 KB
Description	8-Bit DACs
Datasheet	MAX5109 Datasheet

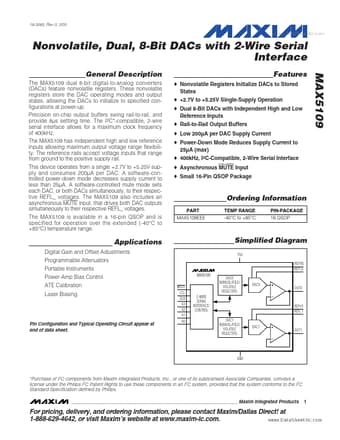

Additional preview pages of the MAX5109 datasheet.

Product details

Description

The MAX5109 dual 8-bit digital-to-analog converters (DACs) feature nonvolatile registers. -compatible, 2-wire serial interface allows for a maximum clock frequency of 400kHz.

Features

o Nonvolatile Registers Initialize DACs to Stored States o +2.7V to +5.25V Single-Supply Operation o Dual 8-Bit DACs with Independent High and Low Reference Inputs o Rail-to-Rail Output Buffers o Low 200µA per DAC Supply Current o Power-Down Mode Reduces Supply Current to 25µA (max) o 400kHz, I2C-Compatible, 2-Wire Serial Interface o Asynchronous MUTE Input o Small 16-Pin QSOP Package MAX5109 Ordering Information PART MAX5109EEE TEMP RANGE -40°C to +85°C PIN-.
