MAX5102 Datasheet, Outputs, Maxim

MAX5102 Features

• Outputs a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up. PART MAX5102AEUE MAX5102BEUE Features o +2.7V to +5.

PDF File Details

Part number:

MAX5102

Manufacturer:

Maxim

File Size:

454.41kb

Download:

📄 Datasheet

Description:

+2.7v to +5.5v / low-power / dual / parallel 8-bit dac with rail-to-rail voltage outputs. The MAX5102 parallel-input, voltage-output, dual 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply

MAX5102 Application

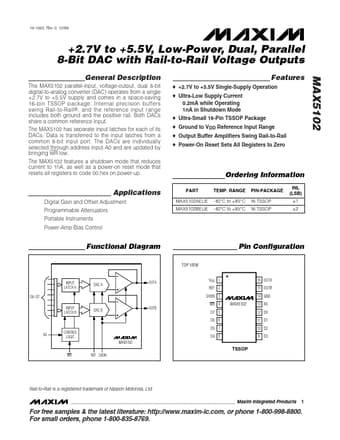

• Applications Digital Gain and Offset Adjustment Programmable Attenuators Portable Instruments Power-Amp Bias Control Functional Diagram TOP VIEW VD
