MAX5100 Features

  • Outputs a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up. o Ultra-Low Supply Current 0.4mA while Operating 1nA

PDF File Details

Part number:

MAX5100

Manufacturer:

Maxim

File Size:

401.51kb

Download:

📄 Datasheet

Description:

+2.7v to +5.5v / low-power / quad / parallel 8-bit dac with rail-to-rail voltage outputs. The MAX5100 parallel-input, voltage-output, quad 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply

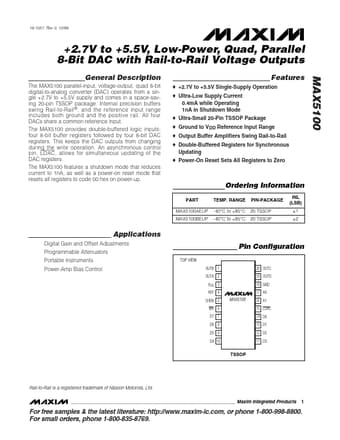

Datasheet Preview: MAX5100 📥 Download PDF (401.51kb)
Page 2 of MAX5100 Page 3 of MAX5100

MAX5100 Application

  • Applications Digital Gain and Offset Adjustments Programmable Attenuators Portable Instruments Power-Amp Bias Control TOP VIEW OUTB 1 OUTA 2 VDD 3 R
