MAX510

Quad / Serial 8-Bit DACs

MAX510 Features

* o o o o o Single +5V or Dual ±5V Supply Operation Output Buffer Amplifiers Swing Rail-to-Rail Reference Input Range Includes Both Supply Rails Calibrated Offset, Gain, and Linearity (1LSB TUE) 10MHz Serial Interface, Compatible with SPI, QSPI (CPOL = CPHA = 0) and Microwire o Double-Buffered Registe

MAX510 General Description

The MAX509/MAX510 are quad, serial-input, 8-bit voltage-output digital-to-analog converters (DACs). They operate with a single +5V supply or dual ±5V supplies. Internal, precision buffers swing rail-to-rail. The reference input range includes both supply rails. The MAX509 has four separate reference.

MAX510 Datasheet (333.26 KB)

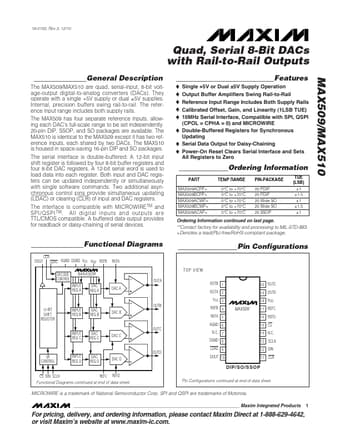

Preview of MAX510 PDF

Datasheet Details

Part number:

MAX510

Manufacturer:

Maxim

File Size:

333.26 KB

Description:

Quad / serial 8-bit dacs.
