MIC10943 Datasheet - Micrel Semiconductor

MIC10943, V. F. Dot Matrix Display Controller

The MIC10939, MIC10942, and MIC10943 Dot Matrix Display Controller is a three-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED). The three-chip set will drive displays with up to 46 anodes (dots) and up to 20 grids (charac.

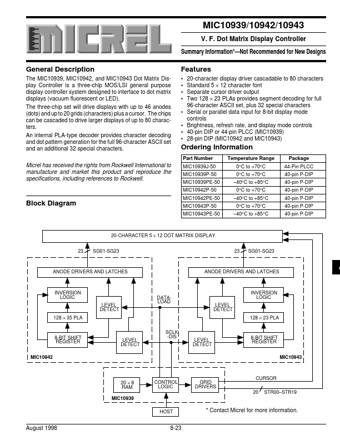

Datasheet Preview Page 1

MIC10943-MicrelSemiconductor.pdf

Preview of MIC10943 PDF

Datasheet Details

Part number:

MIC10943

Manufacturer:

Micrel Semiconductor

File Size:

20.50 KB

Description:

V. F. Dot Matrix Display Controller

MIC10943 Features

* 20-character display driver cascadable to 80 characters Standard 5 × 12 character font Separate cursor driver output Two 128 × 23 PLAs provides segment decoding for full 96-character ASCII set, plus 32 special characters
