NSi1050, Isolated CAN Transceiver

12 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 12 6.2. SAFETY-LIMITING VALUES 13 6.3. REGULATORY INFORMATION15 7. FUNCTION DESCRIPTION 15 7.1. DEVICE FUNCTIONAL MODES 15 7.2. TXD DOMINANT TIME-OUT FUNCTION16 7.3. CURRENT PROTECTION 16 7.4. OVER TEMPERATURE PROTECTION 16 8. APPLICATION NOTE17 8.

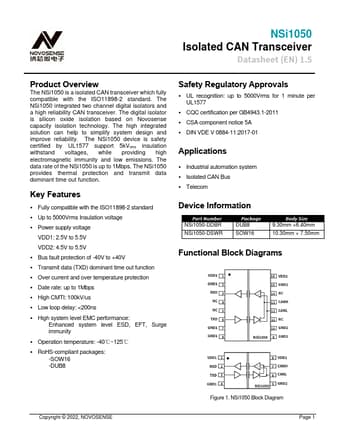

Datasheet Preview Page 1

NSi1050-NOVOSENSE.pdf

NSi1050 Datasheet Preview — Preview of NSi1050 PDF

NSi1050 Datasheet Preview Page 2

NSi1050 Datasheet Preview Page 3

Datasheet Details

Part number:

NSi1050

Manufacturer:

NOVOSENSE

File Size:

2.78 MB

Description:

Isolated CAN Transceiver

NSi1050 Features

* Fully compatible with the ISO11898-2 standard

* Up to 5000Vrms Insulation voltage

* Power supply voltage VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V

* Bus fault protection of -40V to +40V

* Transmit data (TXD) dominant time out function

* Over current and over temperature protect
