NSI1042-Q1 Datasheet - NOVOSENSE

NSI1042-Q1 Isolated CAN Transceiver

12 7.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 12 7.2. INSULATION CHARACTERISTICS 12 7.3. SAFETY-LIMITING VALUES 13 7.4. REGULATORY INFORMATION 15 8. FUNCTION DESCRIPTION 16 8.1. DEVICE FUNCTIONAL MODES 16 8.2. TXD DOMINANT TIME-OUT FUNCTION 17 8.3. BUS DOMINANT TIME-OUT FUNCTION.
NSI1042-Q1 Isolated CAN Transceiver Datasheet (EN) 1.0 Product Overview The NSI1042 is an isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSI1042 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSI1042 device is safety certified by UL1577 su.

NSI1042-Q1 Features

* Fully compatible with the ISO11898-2 standard

* Up to 5000Vrms Insulation voltage

* Power supply voltage VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V

* Bus fault protection of -58V to +58V

* Transmit data (TXD) dominant time out function

* Over current and over temperature protect

NSI1042-Q1 Datasheet (2.58 MB)

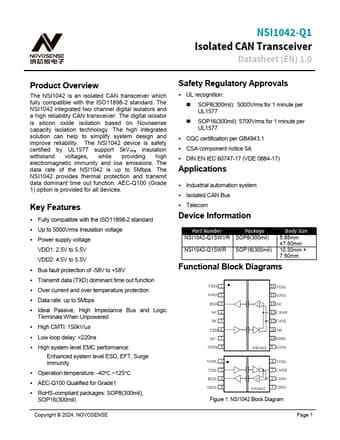

Preview of NSI1042-Q1 PDF
NSI1042-Q1 Datasheet Preview Page 2 NSI1042-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

NSI1042-Q1

Manufacturer:

NOVOSENSE

File Size:

2.58 MB

Description:

Isolated can transceiver.
