NSI1042 Datasheet - NOVOSENSE

NSI1042 Isolated CAN Transceiver

13 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 13 6.2. SAFETY-LIMITING VALUES 14 6.3. REGULATORY INFORMATION 15 7. FUNCTION DESCRIPTION 17 7.1. DEVICE FUNCTIONAL MODES 17 7.2. STANDBY MODE 18 7.3. TXD DOMINANT TIME-OUT FUNCTION 18 7.4. BUS DOMINANT TIME-OUT FUNCTION.
NSI1042/NSI1052 Isolated CAN Transceiver Datasheet (EN) 1.3 Product Overview The NSI1042 is an isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSI1042 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSI1042 device is safety certified by UL15.

NSI1042 Features

* Fully compatible with the ISO11898-2 standard

* Up to 5000Vrms Insulation voltage

* Power supply voltage VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V

* Bus fault protection of -70V to +70V

* Transmit data (TXD) dominant time out function

* Over current and over temperature protect

NSI1042 Datasheet (2.53 MB)

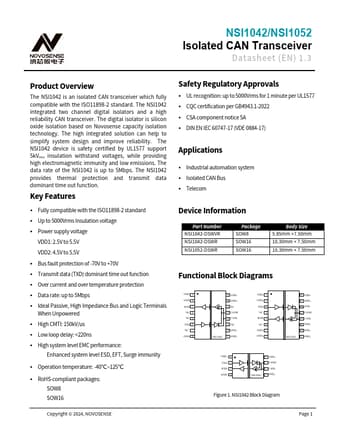

Preview of NSI1042 PDF
NSI1042 Datasheet Preview Page 2 NSI1042 Datasheet Preview Page 3

Datasheet Details

Part number:

NSI1042

Manufacturer:

NOVOSENSE

File Size:

2.53 MB

Description:

Isolated can transceiver.
