NSi1300 Isolated Amplifier

12 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 12 6.2. INSULATION CHARACTERISTICS 12 6.3. REGULATORY INFORMATION 13 7. FUNCTION DESCRIPTION14 7.1. OVERVIEW14 7.2. ANALOG INPUT.

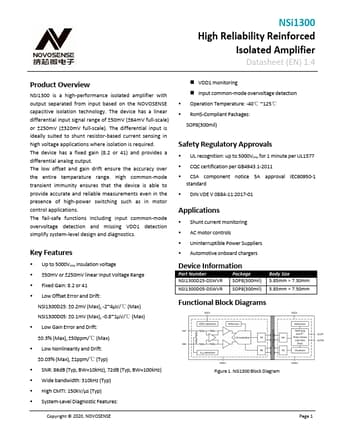

NSi1300 High Reliability Reinforced Isolated Amplifier Datasheet (EN) 1.4 Product Overview NSI1300 is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology. The device has a linear differential input signal range of ±50mV (±64mV full-scale) or ±250mV (±320mV full-scale). The differential input is ideally suited to shunt resistor-based current sensing in high voltage applications where isolation is required. The device has a.

NSi1300 Features

* Up to 5000Vrms Insulation voltage

* ±50mV or ±250mV linear Input Voltage Range

* Fixed Gain: 8.2 or 41

* Low Offset Error and Drift: NSI1300D25: ±0.2mV (Max), -2~4μV/℃ (Max) NSI1300D05: ±0.1mV (Max), -0.8~1μV/℃ (Max)

* Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max)

NSi1300 Datasheet (1.21 MB)
