NSi1311-Q1 - High Reliability Reinforced Isolated Amplifier
8 6.1.
INSULATION AND SAFETY RELATED SPECIFICATIONS 8 6.2.
INSULATION CHARACTERISTICS 9 6.3.
REGULATORY INFORMATION10 7.
FUNCTION DESCRIPTION10 7.1.
OVERVIEW 10 7.2.
ANALOG INPUT11 7.3.
ANALOG OUTPUT11 8.
APPLICATION NOTE

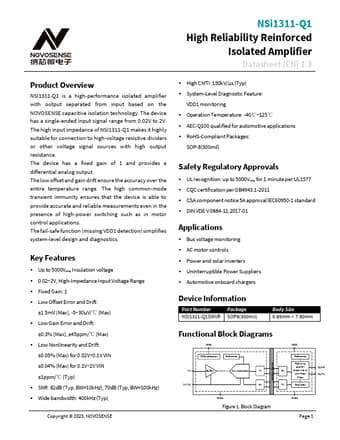

NSi1311-Q1 High Reliability Reinforced Isolated Amplifier Datasheet (EN) 1.3 Product Overview NSI1311-Q1 is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology.
The device has a single-ended input signal range from 0.02V to 2V.
The high input impedance of NSI1311-Q1 makes it highly suitable for connection to high-voltage resistive dividers or other voltage signal sources with high output resistance.
The device has a fixed
NSi1311-Q1 Features
* Up to 5000Vrms Insulation voltage
* 0.02~2V, High-Impedance Input Voltage Range
* Fixed Gain: 1
* Low Offset Error and Drift: ±1.5mV (Max), -5~30μV/℃ (Max)
* Low Gain Error and Drift: ±0.3% (Max), ±45ppm/℃ (Max)
* Low Nonlinearity and Drift: ±0.05% (Max) for 0.02V~0.1V VIN
