NSi1200 High Reliability Reinforced Isolated Amplifier

8 6.1. INSULATION AND SAFETY RELATED SPECIFICATIONS 8 6.2. INSULATION CHARACTERISTICS 9 6.3. REGULATORY INFORMATION 10 7. FUNCTION DESCRIPTION 10 7.1. OVERVIEW 10 7.2. ANALOG INPUT 11 7.3. ANALOG OUTPUT .

NSi1200 High Reliability Reinforced Isolated Amplifier Datasheet (EN) 1.3 Product Overview NSI1200 is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology. The device has a linear differential input signal range of ±250mV (±320mV fullscale). The differential input is ideally suited to shunt resistor-based current sensing in high voltage applications where isolation is required. The device has a fixed gain of 8 and provides.

NSi1200 Features

* Up to 5000Vrms Insulation voltage

* ±250mV linear Input Voltage Range

* Fixed Gain: 8

* Low Offset Error and Drift: ±0.5mV (Max), -4~4μV/℃ (Max)

* Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max)

* Low Nonlinearity and Drift: ±0.03% (Max), ±1ppm/℃ (Typ)

* SNR: 86dB

NSi1200-NOVOSENSE.pdf

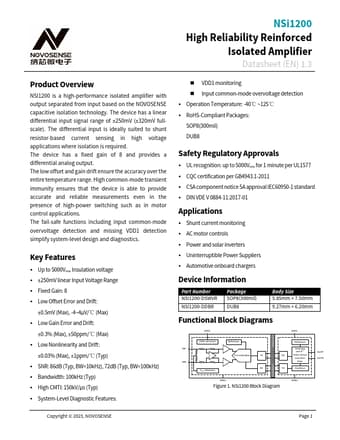

NSi1200 Datasheet Preview — Preview of NSi1200 PDF

Datasheet Details

Part number:

NSi1200

Manufacturer:

NOVOSENSE

File Size:

1.30 MB

Description:

High reliability reinforced isolated amplifier.
