QPA2612, 12Watt X-Band Power Amplifier

12 Watt X-Band Power Amplifier 250 pcs. on 7 inch reel QPA2612 Evaluation Board 1 of 24 www.qorvo.com ® Absolute Maximum Ratings Parameter Rating Drain Voltage (VD) 29.5 V Gate Voltage Range (VG) *4 to 0 V Drain Current (ID) 1700 mA Gate Current (IG) See plot pg. 16 Power Diss.

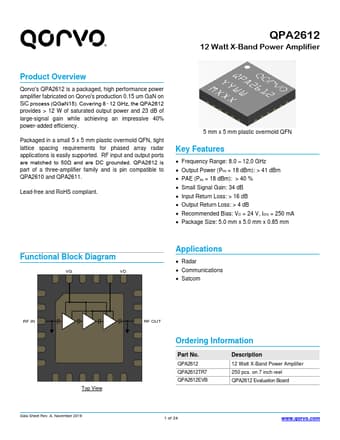

 datasheet Preview Page 1 from Datasheet4u.com

QPA2612-Qorvo.pdf

Preview of QPA2612 PDF

Datasheet Details

Part number:

QPA2612

Manufacturer:

Qorvo

File Size:

889.94 KB

Description:

12Watt X-Band Power Amplifier

QPA2612 Features

* Frequency Range: 8.0

* 12.0 GHz

* Output Power (PIN = 18 dBm): > 41 dBm

* PAE (PIN = 18 dBm): > 40 %

* Small Signal Gain: 34 dB

* Input Return Loss: > 16 dB

* Output Return Loss: > 4 dB

* Recommended Bias: VD = 24 V, IDQ = 250 mA
