RY8122 Datasheet - RYCHIP

RY8122, 18V 2A 500KHz Synchronous Step-Down Regulator

The RY8122 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2A continuous current over a wide input supply range, with excellent load and line regulation. The RY8122 requires a minimal number of.

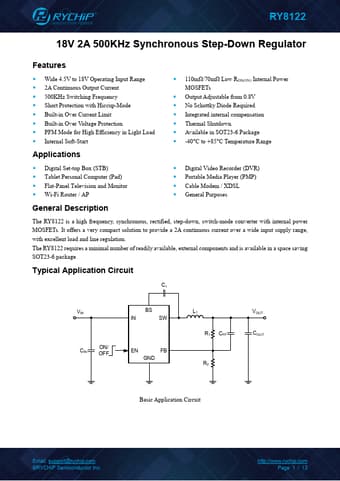

Datasheet Preview Page 1

RY8122-RYCHIP.pdf

RY8122 Datasheet Preview — Preview of RY8122 PDF

RY8122 Datasheet Preview Page 2

RY8122 Datasheet Preview Page 3

Datasheet Details

Part number:

RY8122

Manufacturer:

RYCHIP

File Size:

1.00 MB

Description:

18V 2A 500KHz Synchronous Step-Down Regulator

RY8122 Features

* Wide 4.5V to 18V Operating Input Range

* 2A Continuous Output Current

* 500KHz Switching Frequency

* Short Protection with Hiccup-Mode

* Built-in Over Current Limit

* Built-in Over Voltage Protection

* PFM Mode for High Efficiency in Light L
