RY8630

60V 3A 500KHz Async Step-Down Regulator

RY8630 Features

* Wide 4.5V to 60V Operating Input Range

* 150mΩ Internal Power MOSFETs

* 3A Continuous Output Current

* Output Adjustable from 0.8V

* 500KHZ Switching Frequency

* Internal Soft-Start

* Detectable Output Short Protection

* Therm

RY8630 General Description

e The RY8630 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~60V, it T supplies 3A of continuous output current over a wide input-supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain h.

RY8630 Datasheet (1.26 MB)

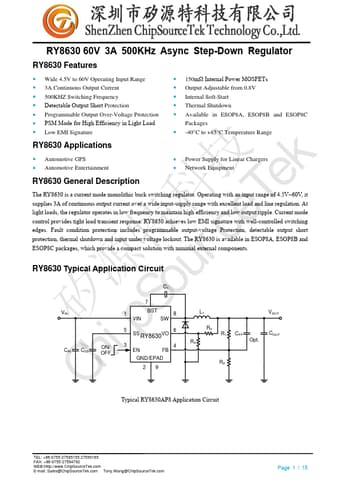

Preview of RY8630 PDF

Datasheet Details

Part number:

RY8630

Manufacturer:

ChipSourceTek

File Size:

1.26 MB

Description:

60v 3a 500khz async step-down regulator.
