RY8601

60V 0.6A 500KHz Async Step-Down Regulator

RY8601 Features

* Wide 4.5V to 60V Operating Input Range

* 500mΩ Internal Power MOSFETs

* 0.6A Continuous Output Current

* Output Adjustable from 0.8V

* 500KHz Switching Frequency

* Low EMI Signature

* Short-Circuit Protection

* Internal Soft-S

RY8601 General Description

The RY8601 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5V~60V, it T supplies 0.6A of continuous output current over a wide input-supply range with excellent load and line regulation. At light loads, the regulator operates in low frequency to maintain hi.

RY8601 Datasheet (2.77 MB)

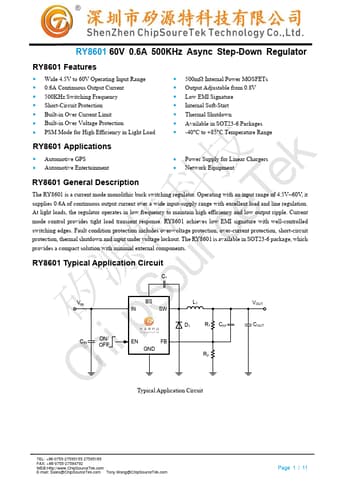

Preview of RY8601 PDF

Datasheet Details

Part number:

RY8601

Manufacturer:

ChipSourceTek

File Size:

2.77 MB

Description:

60v 0.6a 500khz async step-down regulator.
