RY8336

30V 3A 500KHz Synchronous Step-Down Regulator

RY8336 Features

* Wide 4.5V to 30V Operating Input Range

* 130mΩ/100mΩ Low RDS(ON) Internal Power

* 3A Continuous Output Current MOSFETs

* 500KHz Switching Frequency

* Output Adjustable from 0.923V

* Short Protection with Hiccup-Mode

* No Schottky Diod

RY8336 General Description

e The RY8336 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous current over a wide input supply range, c with excellent load and line regulation. The RY8336 requires a minimal numb.

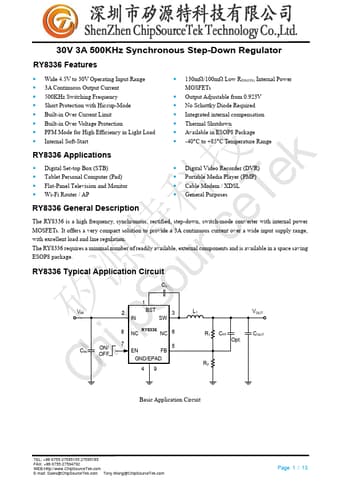

RY8336 Datasheet (904.23 KB)
