RM20N150LD - N-Channel Super Trench Power MOSFET

General Description

frequency switching performance.

low combination of RDS(ON) and Qg.

Key Features

  • VDS =150V,ID =20A RDS(ON)=59mΩ (typical) @ VGS=10V.
  • Excellent gate charge x RDS(on) product(FOM).
  • Very low on-resistance RDS(on).
  • 175 °C operating temperature.
  • Pb-free lead plating.
  • 100% UIS tested Schematic diagram D S G TO-252 -2Ltop view.

📥 Download Datasheet

Datasheet Details

Part number RM20N150LD
Manufacturer Rectron
File Size 264.58 KB
Description N-Channel Super Trench Power MOSFET
Datasheet download datasheet RM20N150LD Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RM2000E High Voltage Silicon Rectifier MCC
RM200DA-20F DIODE MODULES Mitsubishi Electric Semiconductor
RM200DA-24F DIODE MODULES Mitsubishi Electric Semiconductor
RM200DY1-24S Diode Modules Mitsubishi
RM200HA-20F DIODE MODULES Mitsubishi Electric Semiconductor

Other Datasheets by Rectron

Part Number Description
RM2312 N-Channel Enhancement Mode Power MOSFET
RM2N650IP N-Channel Super Junction Power MOSFET II
RM2N650LD N-Channel Super Junction Power MOSFET II

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

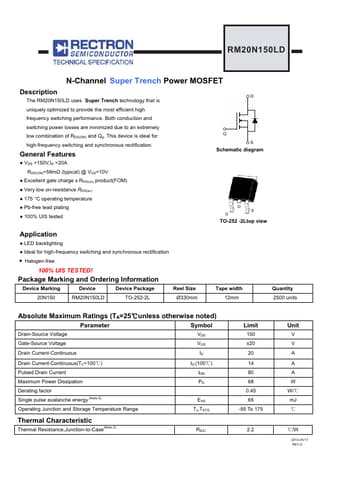

RM20N150LD N-Channel Super Trench Power MOSFET Description The RM20N150LD uses Super Trench technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON) and Qg. This device is ideal for high-frequency switching and synchronous rectification.
