SMG2345PE - P-Channel MosFET

Description

These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation.

Features

  • Low RDS(on) provides higher efficiency and extends battery life. Low thermal impedance copper leadframe SC-59 saves board space. Fast switching speed. High performance trench technology.

📥 Download Datasheet

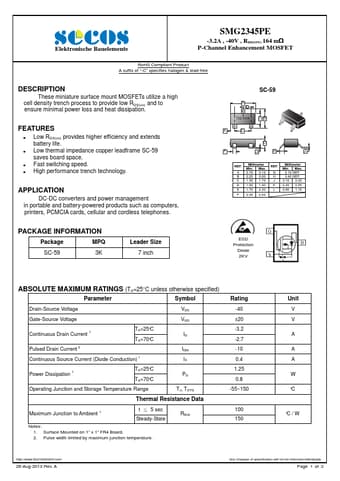

Datasheet preview – SMG2345PE

Datasheet Details

Part number SMG2345PE
Manufacturer SeCoS
File Size 75.72 KB
Description P-Channel MosFET
Datasheet download datasheet SMG2345PE Datasheet
Additional preview pages of the SMG2345PE datasheet.

📁 Similar Datasheet

  • SMG2310B - N-Channel 60V MOSFET (VBsemi)
  • SMG2361P - P-Channel MOSFET (SeCoS Halbleitertechnologie)
  • SMG2392N - N-Channel MOSFET (SeCoS Halbleitertechnologie)
  • SMG2 - Voltage-Controlled Attenuator Module (Tyco Electronics)
  • SMG2 - Voltage Controlled Attenuator Module (MA-COM)
  • SMG240128A - LCM Module (Sunman)
  • SMG240128D - LCD Module (Sunman)
  • SMG240128E - LCD Module (Sunman)
  • SMG2D60C - THYRISTOR (SanRex Corporation)
  • SMG2D60D - THYRISTOR (SanRex Corporation)
Other Datasheets by SeCoS

Full PDF Text Transcription

Click to expand full text
Elektronische Bauelemente SMG2345PE -3.2A , -40V , RDS(ON) 164 mΩ P-Channel Enhancement MOSFET RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free DESCRIPTION These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. FEATURES Low RDS(on) provides higher efficiency and extends battery life. Low thermal impedance copper leadframe SC-59 saves board space. Fast switching speed. High performance trench technology. APPLICATION DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. SC-59 A L 3 Top View CB 12 KE 1 D F GH 3 2 J REF. A B C D E F Millimeter Min. Max. 2.
