TK50F15J1 - MOSFETs

Features

  • (1) (2) (3) Low drain-source on-resistance: RDS(ON) = 22 mΩ (typ. ) (VGS = 10 V) Low leakage current: IDSS = 10 µA (max) (VDS = 150 V) Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) 3. Packaging and Internal Circuit 1: Gate 2: Drain (Heatsink) 3: Source TO-220SM(W) 4. Absolute Maximum Ratings (Note) (Ta = 25 unless otherwise specified) Characteristics Drain-source voltage Gate-source voltage Drain current (DC) Drain current (pulsed) Power dissipation Single-pulse avalanche ener.

📥 Download Datasheet

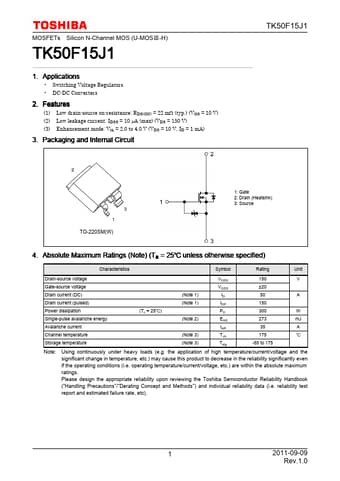

Datasheet preview – TK50F15J1
