MA4E2508 - SURMOUNTTM Low and Medium & High Barrier Silicon Schottky Diodes

Description

The MA4E2508 SurMount™ Anti-Parallel Diode Series are Silicon Low, Medium & High Barrier Schottky Devices fabricated with the patented Heterolithic Microwave Integrated Circuit (HMIC) process.

Features

  • Extremely Low Parasitic Capitance and Inductance.
  • Surface Mountable in Microwave Circuits, No Wirebonds Required.
  • Rugged HMIC Construction with Polyimide Scratch Protection.
  • Reliable, Multilayer Metalization with a Diffusion.
  • Barrier, 100% Stabilization Bake (300°C, 16 hours).
  • Lower Susceptibility to ESD Damage MA4E2508 Series V2 The MA4E2508 Family of SurMount Schottky diodes are recommended for use in microwave circuits through Ku band f.

📥 Download Datasheet

📁 Similar Datasheet

  • MA4E2502 - Silicon Schottky Diode (MACOM)
  • MA4E2514 - Low and Medium Barrier Silicon Schottky Diode (MACOM)
  • MA4E2054 - Surface Mount Low Barrier Schottky Diode (Tyco)
  • MA4E2054 - Surface Mount Low Barrier Schottky Diode (MACOM)
  • MA4E2160 - GaAs Flip Chip Schottky Barrier Diodes (MA-COM)
  • MA4E2200A1-1141T - Surface Mount Zero Bias Schottky Diodes (MACOM)
  • MA4E2200B1-287T - Surface Mount Zero Bias Schottky Diodes (MACOM)
  • MA4E2200D1-287T - Surface Mount Zero Bias Schottky Diodes (MACOM)
  • MA4E2811 - Multi Purpose Axial Leaded Glass Schottky Diodes (MA-COM)
  • MA4E2812-54 - Multi Purpose Axial Leaded Glass Schottky Diodes (MA-COM)
Other Datasheets by Tyco Electronics
  • MA4E2501-1290 - SURMOUNTTM Low Barrier 0201 Footprint Silicon Schottky Diodes
  • MA4E2502 - Medium and High Barrier Silicon Schottky Diodes
  • MA4E2513-1289 - Silicon Schottky Diodes
  • MA4E2514 - SURMOUNT Low and Medium Barrier Silicon Schottky Diodes
  • MA4E2532L-1113 - SURMOUNT Low & Medium Barrier Silicon Schottky Diodes
  • MA4E2532M-1113 - SURMOUNT Low & Medium Barrier Silicon Schottky Diodes
  • MA4E2544L-1282 - SURMOUNTTM Low Barrier Silicon Schottky Cross-Over Quad Series
  • MA4E2037 - (MA4E2037 - MA4E2040) GaAs Beam Lead Schottky Barrier Diodes

Full PDF Text Transcription

Click to expand full text

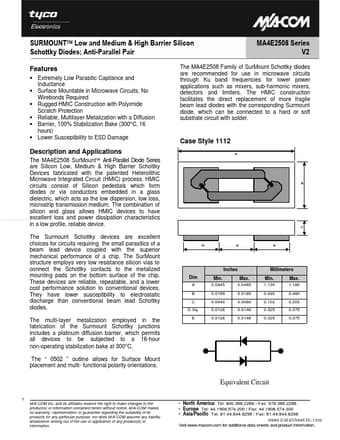

SURMOUNTTM Low and Medium & High Barrier Silicon Schottky Diodes: Anti-Parallel Pair Features • Extremely Low Parasitic Capitance and Inductance • Surface Mountable in Microwave Circuits, No Wirebonds Required • Rugged HMIC Construction with Polyimide Scratch Protection • Reliable, Multilayer Metalization with a Diffusion • Barrier, 100% Stabilization Bake (300°C, 16 hours) • Lower Susceptibility to ESD Damage MA4E2508 Series V2 The MA4E2508 Family of SurMount Schottky diodes are recommended for use in microwave circuits through Ku band frequencies for lower power applications such as mixers, sub-harmonic mixers, detectors and limiters.
