WSP6067A Datasheet - Winsok

WSP6067A N&P-Channel MOSFET

Product Summery The WSP6067A is the highest performance trench N-ch and P-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP6067A meet the RoHS and Green Product requirement , 100% EAS guarantee.

WSP6067A Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings BVDSS RDSON ID 60V 38mΩ 7A -60V 80mΩ -5A Applications z High Frequency Point-of-Load Synchronous Buck Converter.

WSP6067A Datasheet (2.84 MB)

Preview of WSP6067A PDF

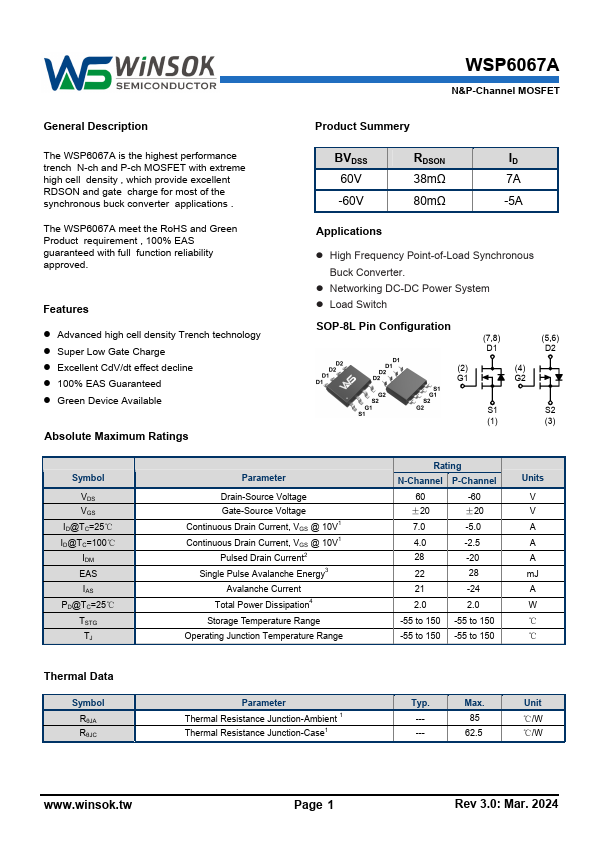

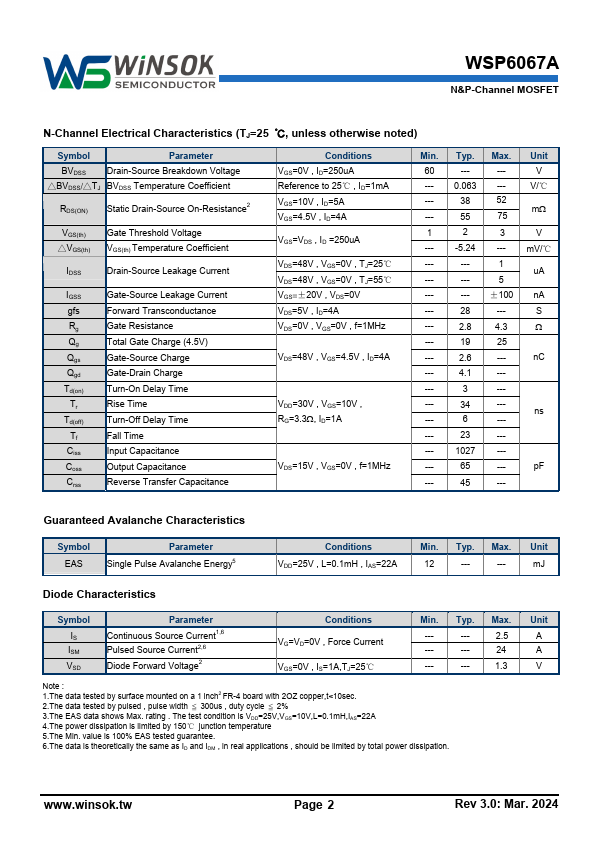

WSP6067A Datasheet Preview Page 2 WSP6067A Datasheet Preview Page 3

Datasheet Details

Part number:

WSP6067A

Manufacturer:

Winsok

File Size:

2.84 MB

Description:

N&p-channel mosfet.
