WSP6946 Datasheet - Winsok

WSP6946 Dual N-Ch MOSFET

The WSP6946 is the highest performance trench N-ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSP6946 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabil.

WSP6946 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available WSP6946 Dual N-Ch MOSFET Product Summery BVDSS 60V RDSON 43mΩ ID 6.5A Applications z High Frequency Point-of-Load Synchronous Buck Converter

WSP6946 Datasheet (2.17 MB)

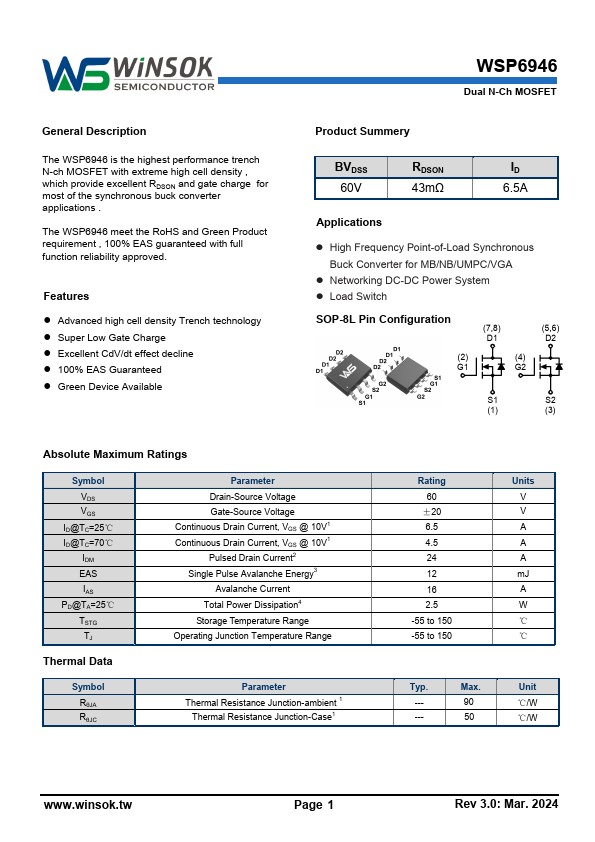

Preview of WSP6946 PDF

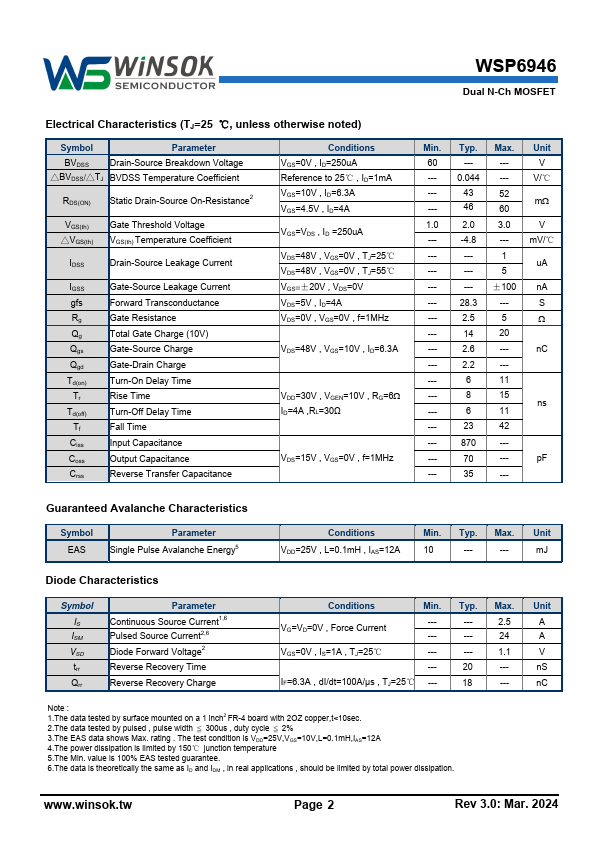

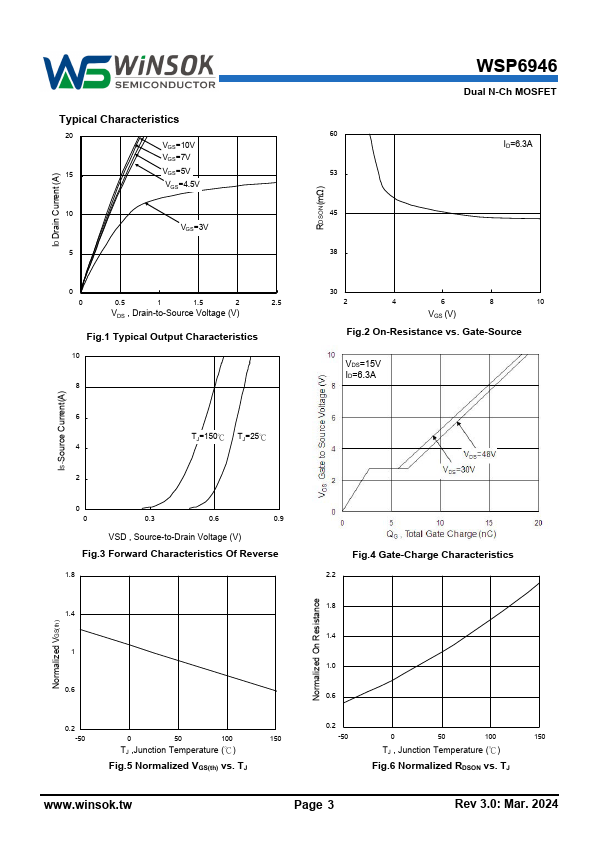

WSP6946 Datasheet Preview Page 2 WSP6946 Datasheet Preview Page 3

Datasheet Details

Part number:

WSP6946

Manufacturer:

Winsok

File Size:

2.17 MB

Description:

Dual n-ch mosfet.
