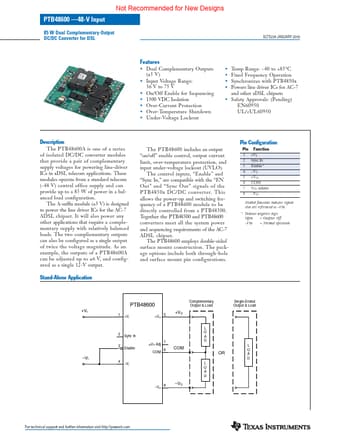

Page 1 of PTB48600 Page 2 of PTB48600 Page 3 of PTB48600

PTB48600 converter equivalent

  • 85w dual complementary-output dc/dc converter.
  • Preview is limited to up to three pages.

PTB48600 Features and benefits

PTB48600 Features and benefits


* Dual Complementary Outputs (±5 V)
* Input Voltage Range: 36 V to 75 V
* On/Off Enable for Sequencing
* 1500 VDC Isolation
* Over-Current Protection .

PTB48600 Application

PTB48600 Application

These modules operate from a standard telecom (-48 V) central office supply and can provide up to a 85 W of power in a .

PTB48600 Description

PTB48600 Description

The PTB48600A is one of a series of isolated DC/DC converter modules that provide a pair of complementary supply voltages for powering line-driver ICs in xDSL telecom applications. These modules operate from a standard telecom (-48 V) central office .
