PTB20003

4 Watts/ 915-960 MHz Cellular Radio RF Power Transistor

PTB20003 General Description

The 20003 is a class AB, NPN, common emitter RF power transistor intended for 25 Vdc operation across the 915 to 960 MHz frequency band. Rated at 4 Watts minimum output power, it may be used for both CW and PEP applications. Ion implantation, nitride surface passivation and gold metallization are us.

PTB20003 Datasheet (54.47 KB)

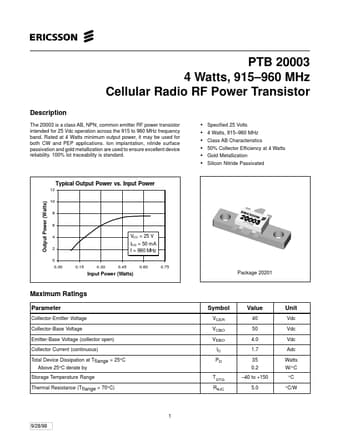

Preview of PTB20003 PDF

Datasheet Details

Part number:

PTB20003

Manufacturer:

Ericsson

File Size:

54.47 KB

Description:

4 watts/ 915-960 mhz cellular radio rf power transistor.
