PTB20005

15 Watts/ 860-900 MHz Cellular Radio RF Power Transistor

PTB20005 General Description

The 20005 is a class AB, NPN, common emitter RF power transistor intended for 25 Vdc operation across the 860 to 900 MHz frequency band. Rated at 15 watts minimum output power, it may be used for both CW and PEP applications. Ion implantation, nitride surface passivation and gold metallization are u.

PTB20005 Datasheet (44.56 KB)

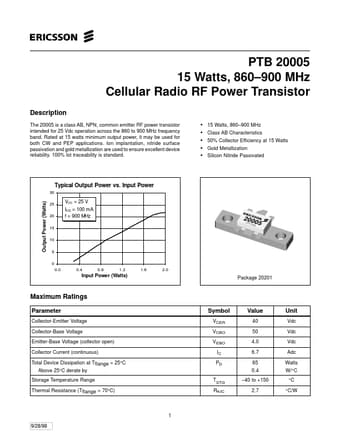

Preview of PTB20005 PDF

Datasheet Details

Part number:

PTB20005

Manufacturer:

Ericsson

File Size:

44.56 KB

Description:

15 watts/ 860-900 mhz cellular radio rf power transistor.
