PTB48502

48-V INPUT ISOLATED DC/DC CONVERTER

PTB48502 Features

* Dual Outputs (Independently Regulated)

* Input Voltage Range: 36 V to 75 V

* Power-Up/Down Sequencing

* 1500 VDC Isolation

* Over-Current Protection

* Over-Temperature Shutdown

* Under-Voltage Lockout

* Fixed Frequency Operation

PTB48502 General Description

The PTB4850x power modules are a dual-output isolated DC/DC converter, designed to provide the logic supply voltages for AC-7 based xDSL applications. The PTB48500 is rated for 13 A of total output current, making it suitable for 32-channel xDSL applications. The PTB48501 and PTB48502 provide output.

PTB48502 Datasheet (505.43 KB)

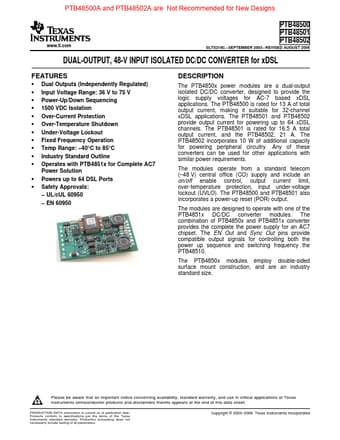

Preview of PTB48502 PDF

Datasheet Details

Part number:

PTB48502

Manufacturer:

Texas Instruments ↗

File Size:

505.43 KB

Description:

48-v input isolated dc/dc converter.
PTB48500A and PTB48502A are Not Recommended for New Designs www.ti.com PTB48500 PTB48501 PTB48502 SLTS218C SEPTEMBER 2003 REVISE.
