PTB48520W

48-V INPUT ISOLATED DC/DC CONVERTER

Texas Instruments

PTB48520W Features

* Input Voltage: 36 V to 75 V

* 25-A Total Output Current

* 91% Efficiency

* Wide-Adjust Output Voltage: 1.8 V to 3.6 V

* Overcurrent Protection

* Output Overvoltage Protection

* Overtemperature Shutdown

* Output Enable Control

PTB48520W General Description

The PTB48520W is a 25-A rated, 48-V input isolated dc/dc converter that incorporates Auto-Track™ power-up sequencing. This allows these modules to simultaneously power up with any other downstream non-isolated, Auto-Track compliant module. The PTB48520W module provides two outputs, each regulated to.

PTB48520W Datasheet (863.29 KB)

PTB48520W Datasheet Preview — Preview of PTB48520W PDF

Datasheet Details

Part number:

PTB48520W

Manufacturer:

Texas Instruments ↗

File Size:

863.29 KB

Description:

48-v input isolated dc/dc converter.

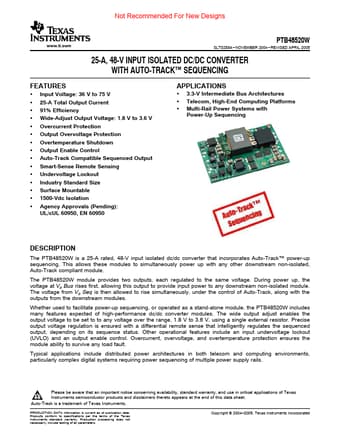

Not Recommended For New Designs www.ti.com PTB48520W SLTS233A NOVEMBER 2004 REVISED APRIL 2005 25-A, 48-V INPUT ISOLATED DC/DC C.
