74AHC132D - Quad 2-input NAND Schmitt trigger

Download the 74AHC132D datasheet PDF. This datasheet also covers the 74AHC132 variant, as both devices belong to the same quad 2-input nand schmitt trigger family and are provided as variant models within a single manufacturer datasheet.

General Description

The 74AHC132; 74AHCT132 is a quad 2-input NAND gate with Schmitt-trigger inputs.

Inputs are overvoltage tolerant.

This feature allows the use of these devices as translators in mixed voltage environments.

Key Features

  • Wide supply voltage range from 2.0 V to 5.5 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • High noise immunity.
  • CMOS low power dissipation.
  • Input levels:.
  • For 74AHC132: CMOS level.
  • For 74AHCT132: TTL level.
  • ESD protection:.
  • HBM JESD22-A114E exceeds 2000 V.
  • MM JESD22-A115-A exceeds 200 V.
  • CDM JESD22-C101C exceeds 1000 V.
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74AHC132-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 74AHC132D
Manufacturer Nexperia
File Size 272.20 KB
Description Quad 2-input NAND Schmitt trigger
Datasheet download datasheet 74AHC132D Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74AHC132 Quad 2-input NAND Schmitt trigger NXP
74AHC138 3-to-8 line decoder/demultiplexer NXP
74AHC138 3-TO-8 LINE DECODER DEMULTIPLEXER Diodes
74AHC138S16 3-TO-8 LINE DECODER DEMULTIPLEXER Diodes
74AHC138T16 3-TO-8 LINE DECODER DEMULTIPLEXER Diodes

Other Datasheets by Nexperia

Part Number Description
74AHC132 Quad 2-input NAND Schmitt trigger
74AHC132-Q100 Quad 2-input NAND Schmitt trigger
74AHC132BQ Quad 2-input NAND Schmitt trigger
74AHC138 3-to-8 line decoder/demultiplexer
74AHC138-Q100 3-to-8 line decoder/demultiplexer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

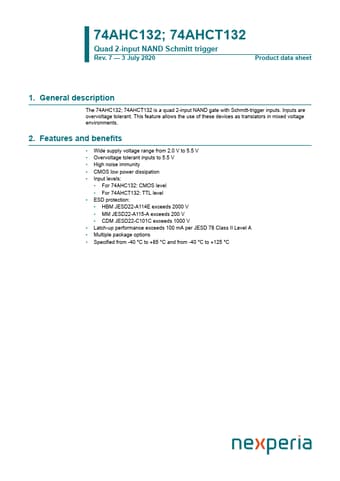

74AHC132; 74AHCT132 Quad 2-input NAND Schmitt trigger Rev. 7 — 3 July 2020 Product data sheet 1. General description The 74AHC132; 74AHCT132 is a quad 2-input NAND gate with Schmitt-trigger inputs. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments. 2. Features and benefits • Wide supply voltage range from 2.0 V to 5.5 V • Overvoltage tolerant inputs to 5.
