TPA1286 Instrumentation Amplifier

TPA1286 Description

TPA1286 High Voltage, Precision, Zero-drift, Instrumentation Amplifier .
The TPA1286 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 1 and 1,000.

TPA1286 Features

* Excellent DC specifications
* Small voltage offset: ±50uV (MAX)
* Small voltage offset drift: 0.2μV/°C (MAX)
* Small input bias current: 1.5nA (MAX)
* Excellent AC specifications
* CMRR: 80dB @ G=1 (MIN)
* Small input noise: 15nV/√Hz @ G=10
* Input noise (0.1 Hz to

TPA1286 Applications

* that demand the best DC performance. The TPA1286 operates from single 4V to 36V supply, offers breakthrough performance throughout the

📥 Download Datasheet

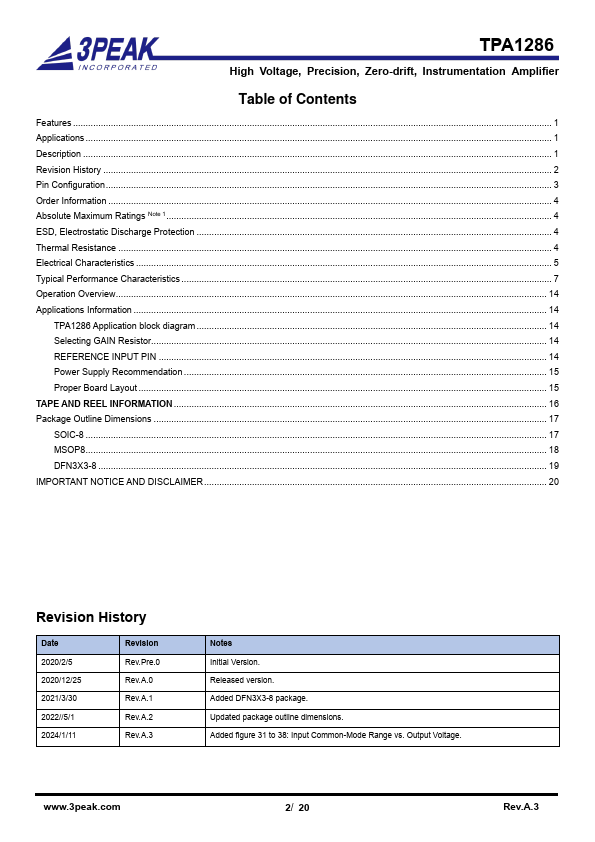

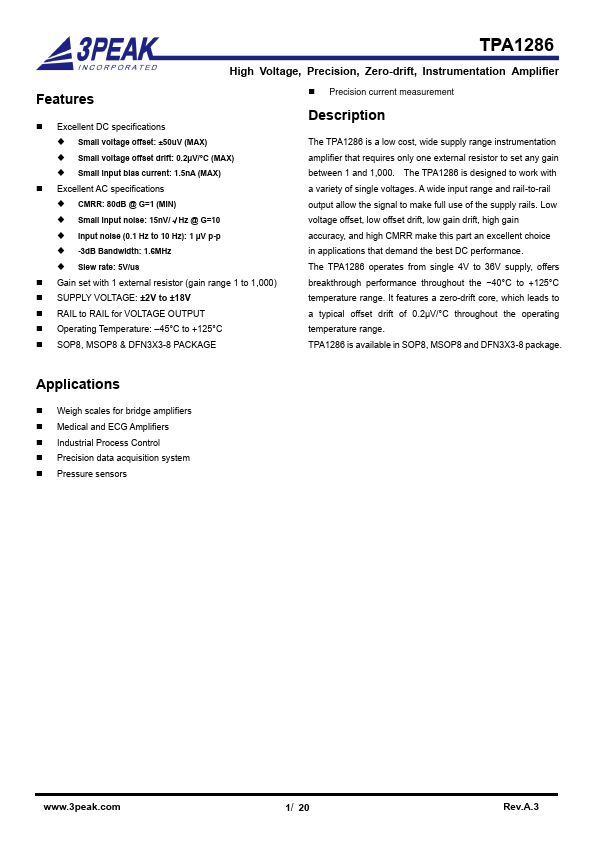

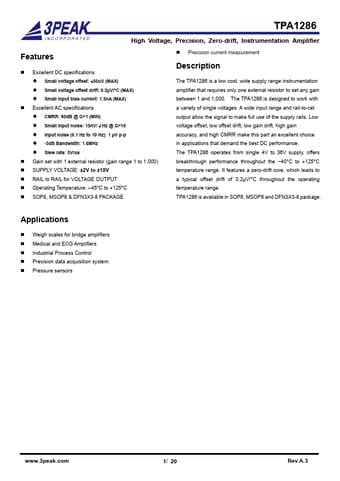

Preview of TPA1286 PDF

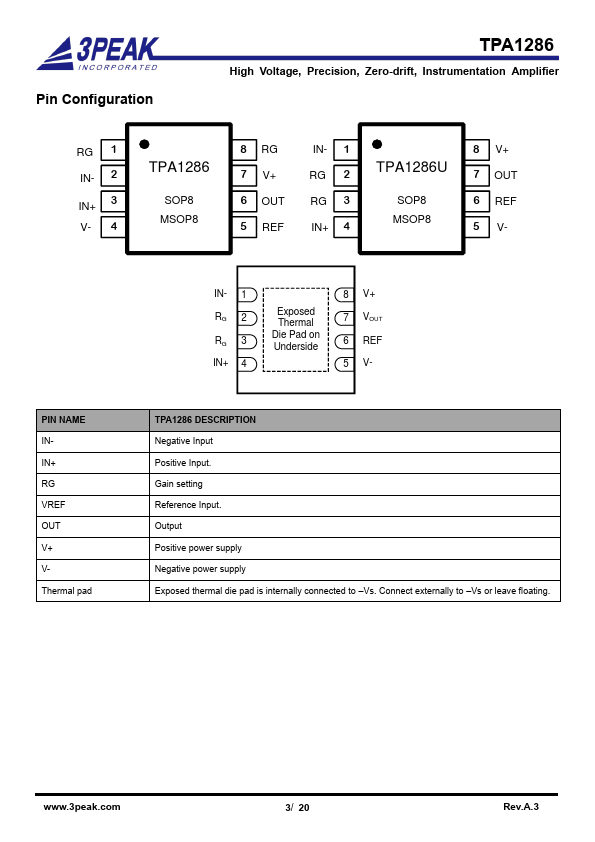

datasheet Preview Page 2 datasheet Preview Page 3
