TPA183 Datasheet, Amplifier, 3PEAK

TPA183 Features

  • Amplifier
  • Offset Voltage: ±250 μV (MAX)
  • Wide Common-Mode Voltage: 2.7 V to 30 V
  • Accuracy and Zero-Drift Performance
  • ±1% Gain Error (Max over temperature) <

PDF File Details

Part number:

TPA183

Manufacturer:

3PEAK

File Size:

811.71kb

Download:

📄 Datasheet

Description:

Precision current sense amplifier. The TPA183 series of zero-drift, unidirectional current sense amplifiers can sense voltage drops across shunts at common-mode voltage

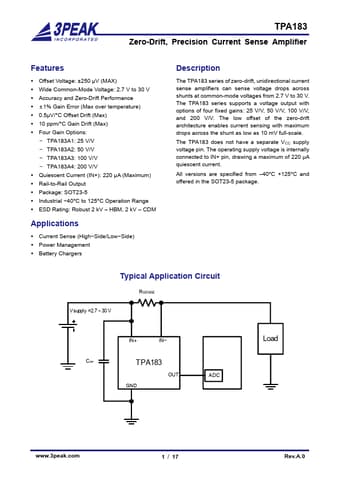

Datasheet Preview: TPA183 📥 Download PDF (811.71kb)
Page 2 of TPA183 Page 3 of TPA183

TPA183 Application

  • Applications
  • Current Sense (High
  • Side/Low
  • Side)
  • Power Management
  • Battery Chargers Description The TPA
