TPA1862, TPA1861 Zero-Drift Op Amps

TPA1862 Description

TPA1861/TPA1862/TPA1864 40-V, 6-MHz, Zero-Drift Op Amps .
The TPA186x series of amplifiers are the newest highsupply voltage amplifiers with 30-μV low offset, low noise, and stable high-frequency response.

TPA1862 Features

* Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 v
* Offset Voltage: ±30 μV Maximum
* Differential Input Voltage Range to Supply Rail, can Work as Comparator
* Input Rail to
* VS, Rail-to-Rail Output
* Drive Any Capacitive Load
* Bandwidth: 6 M

TPA1862 Applications

* Instrumentation
* Active Filters, ASIC Input or Output Amplifier
* Sensor Interface
* Motor Control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPA1862, TPA1861. Please refer to the document for exact specifications by model.

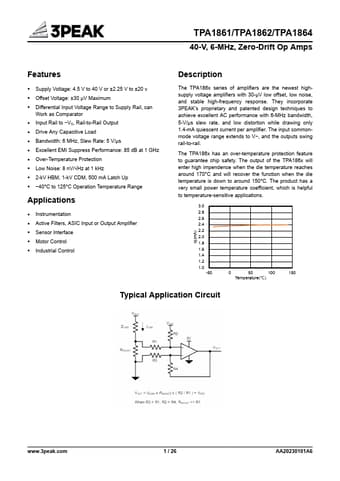

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPA1862, TPA1861
Manufacturer
3PEAK
File Size
1.80 MB
Datasheet
TPA1861-3PEAK.pdf
Description
Zero-Drift Op Amps
Note
This datasheet PDF includes multiple part numbers: TPA1862, TPA1861.
Please refer to the document for exact specifications by model.
