TPA180, TPA62 Datasheet - STMicroelectronics

TPA180 Trisil

These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines. They are available in SMA, SMB and DO-15 packages. Benefits Trisils are not subject to ageing and provide a fail safe mode in short circuit for a better protection.

TPA180 Features

* Bidirectional crowbar protection

* Voltage range from 62 V to 320 V

* Low capacitance from 12 pF to 20 pF @ 50 V

* Low leakage current : IR = 2 µA max

* Holding current: IH = 150 mA min

* Repetitive peak pulse current : IPP = 50 A (10/1000 µs) Main applications Telecommunic

TPA62-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: TPA180, TPA62. Please refer to the document for exact specifications by model.

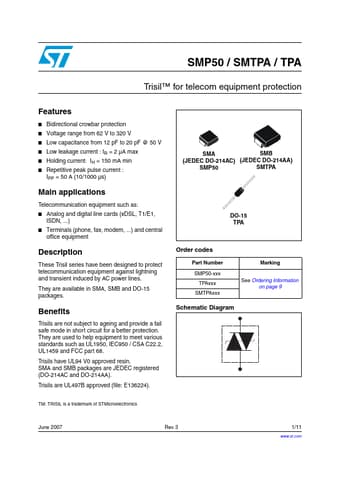

TPA180 Datasheet Preview Page 2 TPA180 Datasheet Preview Page 3

Datasheet Details

Part number:

TPA180, TPA62

Manufacturer:

STMicroelectronics ↗

File Size:

125.26 KB

Description:

Trisil.

Note:

This datasheet PDF includes multiple part numbers: TPA180, TPA62.
Please refer to the document for exact specifications by model.
