TPA1881 - Zero-Drift Op Amps

Product Overview

3PEAK

Datasheet Details

Part number	TPA1881
Manufacturer	3PEAK
File Size	1.11 MB
Description	Zero-Drift Op Amps
Datasheet	TPA1881 Datasheet

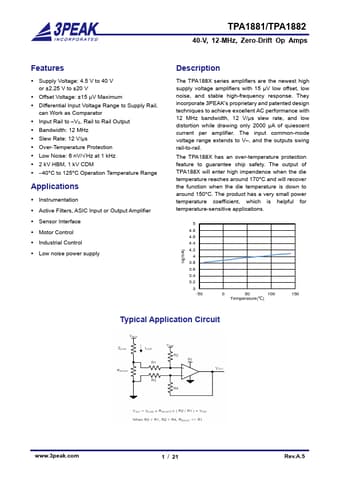

Additional preview pages of the TPA1881 datasheet.

Product details

Description

The TPA188X series amplifiers are the newest high supply voltage amplifiers with 15 μV low offset, low noise, and stable high-frequency response. , and the outputs swing rail-to-rail.

Features

Supply Voltage: 4.5 V to 40 V or ±2.25 V to ±20 V.
Offset Voltage: ±15 μV Maximum.
Differential Input Voltage Range to Supply Rail, can Work as Comparator.
Input Rail to.
VS, Rail to Rail Output.
Bandwidth: 12 MHz.
Slew Rate: 12 V/μs.
Over-Temperature Protection.
Low Noise: 6 nV/√Hz at 1 kHz.
2 kV HBM, 1 kV CDM.
40°C to 125°C Operation Temperature Range.
