TPAFE411 - HALL Sensor Signal Conditioning IC

3PEAK

📥 Download Datasheet

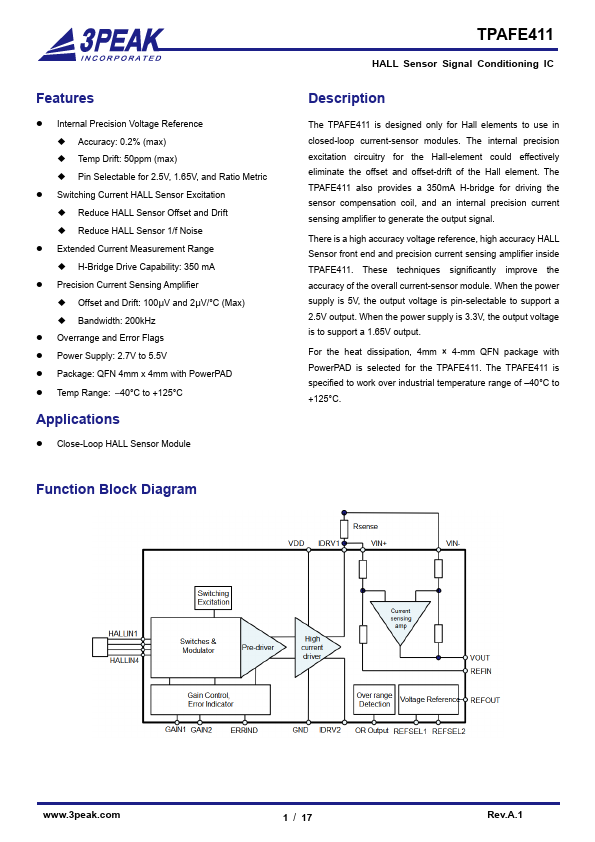

TPAFE411 Datasheet Preview — Preview of TPAFE411 PDF

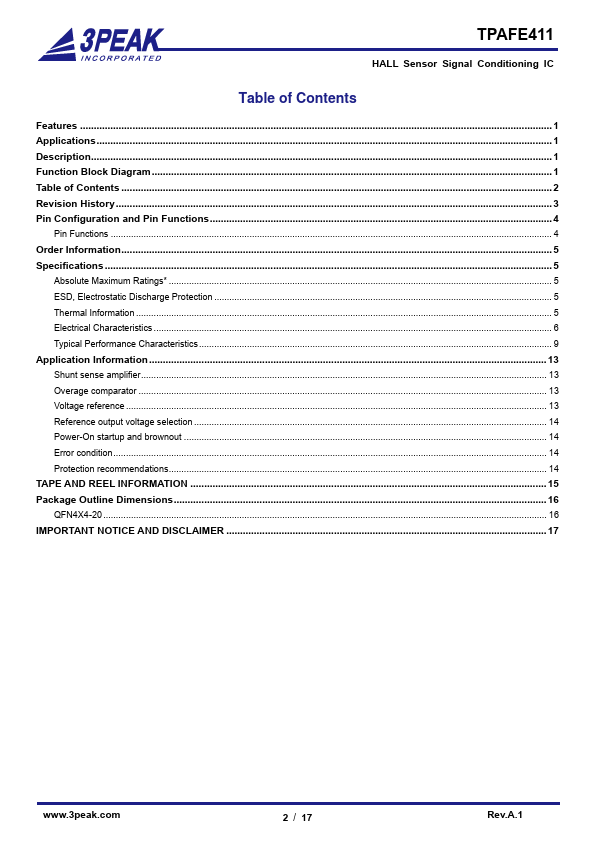

datasheet Preview Page 2

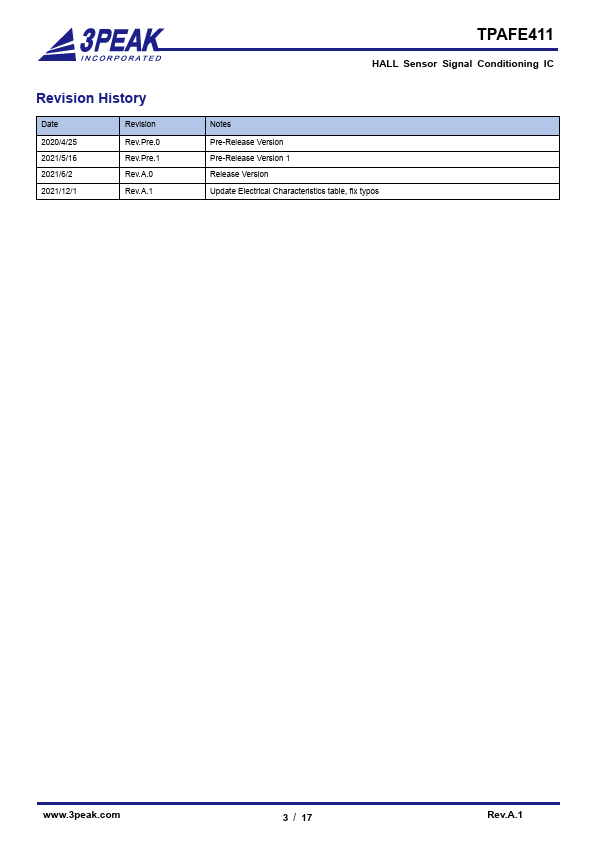

datasheet Preview Page 3

Datasheet Details

Part number	TPAFE411
Manufacturer	3PEAK
File Size	817.44 KB
Description	HALL Sensor Signal Conditioning IC
Datasheet	TPAFE411-3PEAK.pdf

TPAFE411 Product details

Description

The TPAFE411 is designed only for Hall elements to use in closed-loop current-sensor modules.

Features

Internal Precision Voltage Reference.
Accuracy: 0.2% (max).
Temp Drift: 50ppm (max).
Pin Selectable for 2.5V, 1.65V, and Ratio Metric.
Switching Current HALL Sensor Excitation.
Reduce HALL Sensor Offset and Drift.
Reduce HALL Sensor 1/f Noise.
Extended Current Measurement Range.
H-Bridge Drive Capability: 350 mA.
Precision Current Sensing Amplifier.
Offset and Drift: 100μV and 2μV/°C (Max).
Bandwidth: 200kHz.
Overrange and Error F.
