TPAFE5162 - 16bit 8-Channel Simultaneous Sampling ADC

3PEAK

📥 Download Datasheet

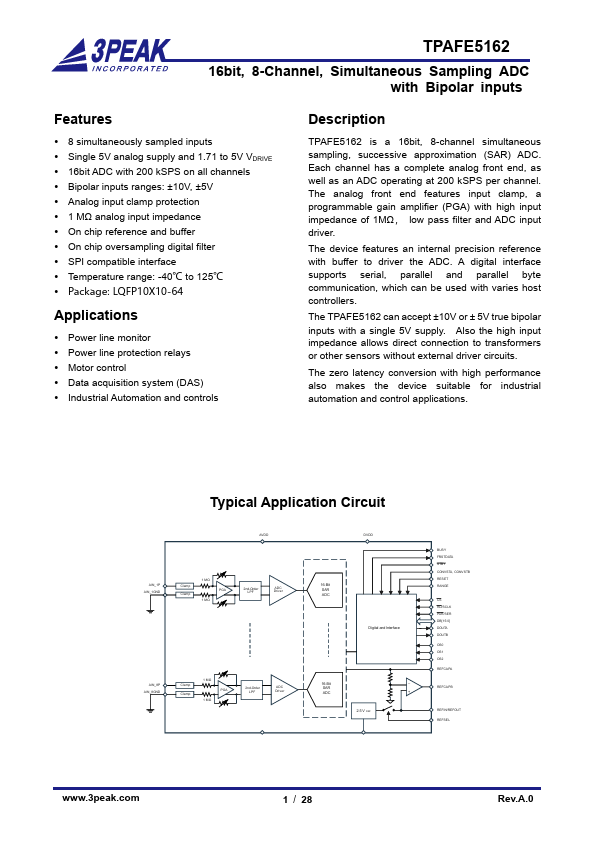

TPAFE5162 Datasheet Preview — Preview of TPAFE5162 PDF

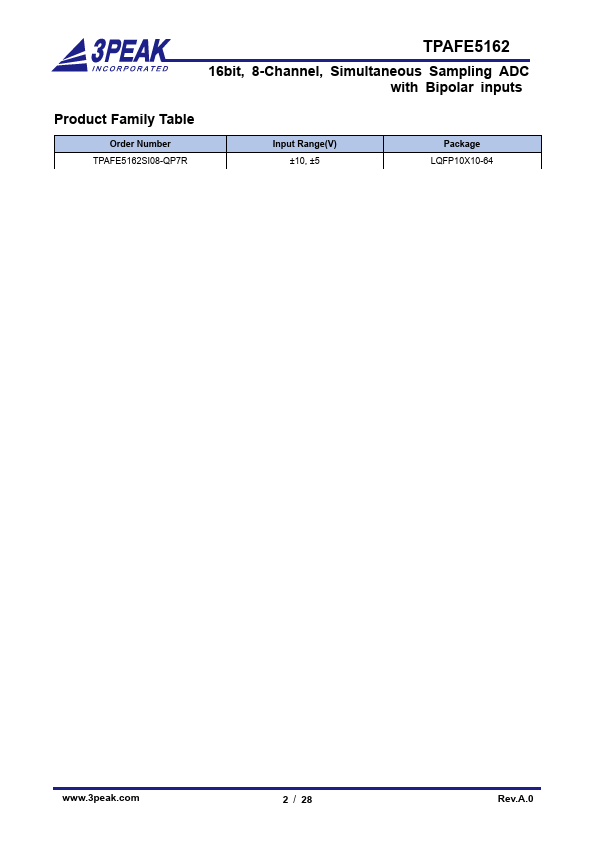

datasheet Preview Page 2

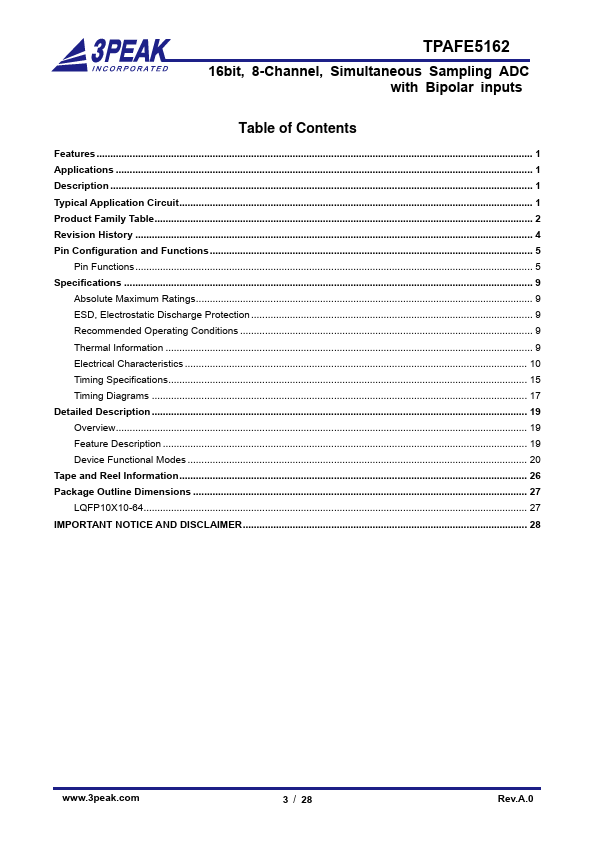

datasheet Preview Page 3

Datasheet Details

Part number	TPAFE5162
Manufacturer	3PEAK
File Size	970.77 KB
Description	16bit 8-Channel Simultaneous Sampling ADC
Datasheet	TPAFE5162-3PEAK.pdf

TPAFE5162 Product details

Description

TPAFE5162 is a 16bit, 8-channel simultaneous sampling, successive approximation (SAR) ADC.

Features

8 simultaneously sampled inputs.
Single 5V analog supply and 1.71 to 5V VDRIVE.
16bit ADC with 200 kSPS on all channels.
Bipolar inputs ranges: ±10V, ±5V.
Analog input clamp protection.
1 MΩ analog input impedance.
On chip reference and buffer.
On chip oversampling digital filter.
SPI compatible interface.
Temperature range: -40℃ to 125℃.
Package: LQFP10X10-64.
