Part number:
TPL700F30
Manufacturer:
3PEAK
File Size:
627.04 KB
Description:
Ldo.

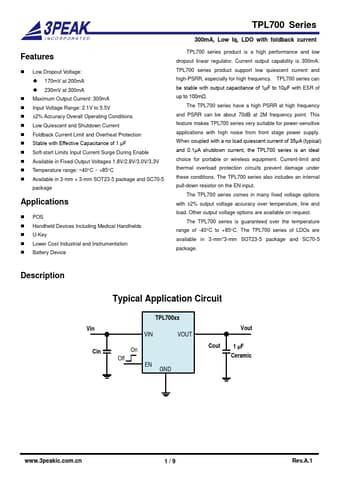

TPL700F30 Datasheet (627.04 KB)
* Low Dropout Voltage:
* 170mV at 200mA
* 230mV at 300mA
* Maximum Output Current: 300mA
* Input Voltage Range: 2.1V to 5.5V
* ±2% Accuracy Overall Operating Conditions
* Low Quiescent and Shutdown Current
* Foldback Current Limit and Overheat Protection
* Stable
TPL700F30 Datasheet (627.04 KB)
TPL700F30
3PEAK
627.04 KB
Ldo.
