TPL9032 Datasheet - 3PEAK

TPL9032 Ultra-low Noise LDO

The TPL9032 series products are 300-mA high PSRR, ultra-low noise, and low dropout linear regulators with high output accuracy. The TPL9032 series products support both fixed output voltage ranges from 0.9 V to 5 V and are stable with 1 μF or larger ceramic output capacitor. The TPL9032 series produ.

TPL9032 Features

* Applications

* Input Voltage Range: 1.75 V to 5.5 V

* Output Voltage Range: 0.9 V to 5 V

* ±2% Output Accuracy Over Line, Load Regulation, and Operating Temperature Range

* 300-mA Maximum Output Current

* Low Dropout Voltage: 180 mV Maximum at 300 mA

TPL9032 Datasheet (1.76 MB)

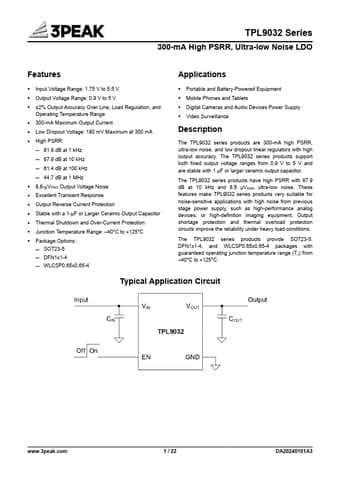

Preview of TPL9032 PDF
TPL9032 Datasheet Preview Page 2 TPL9032 Datasheet Preview Page 3

Datasheet Details

Part number:

TPL9032

Manufacturer:

3PEAK

File Size:

1.76 MB

Description:

Ultra-low noise ldo.
