TPL910 - 1-A Output High-PSRR Low-Noise LDO Regulator

3PEAK

TPL910 Datasheet Preview — Preview of TPL910 PDF

Datasheet Details

Part number	TPL910
Manufacturer	3PEAK
File Size	695.00 KB
Description	1-A Output High-PSRR Low-Noise LDO Regulator
Datasheet	TPL910-3PEAK.pdf

TPL910 Product details

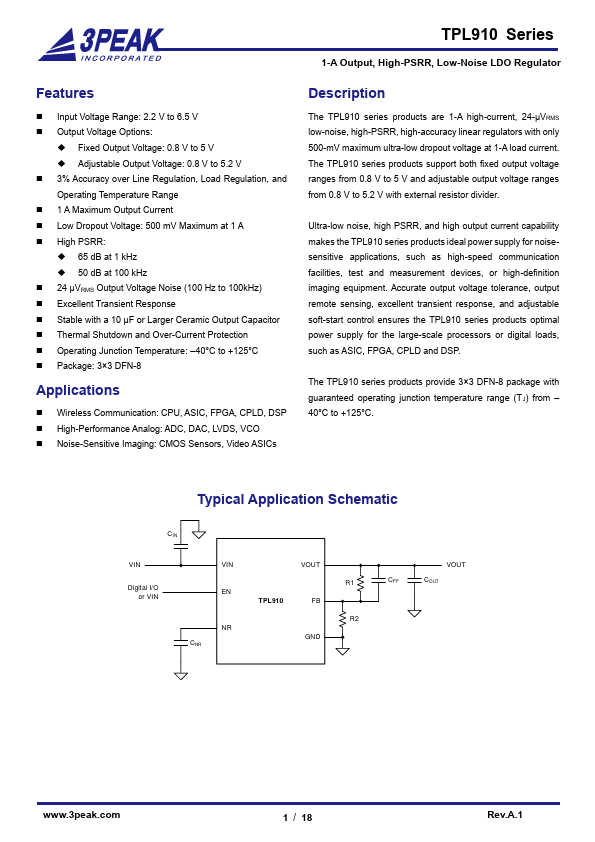

Description

The TPL910 series products are 1-A high-current, 24-μVRMS low-noise, high-PSRR, high-accuracy linear regulators with only 500-mV maximum ultra-low dropout voltage at 1-A load current.

Features

Input Voltage Range: 2.2 V to 6.5 V.
Output Voltage Options:.
Fixed Output Voltage: 0.8 V to 5 V.
Adjustable Output Voltage: 0.8 V to 5.2 V.
3% Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range.
1 A Maximum Output Current.
Low Dropout Voltage: 500 mV Maximum at 1 A.
High PSRR:.
65 dB at 1 kHz.
50 dB at 100 kHz.
24 μVRMS Output Voltage Noise (100 Hz to 100kHz).
Excellent Transient Response.
Stable with.
