TPL910A - Low-Noise Low-Dropout Linear Regulator

3PEAK

TPL910A Datasheet Preview — Preview of TPL910A PDF

Datasheet Details

Part number	TPL910A
Manufacturer	3PEAK
File Size	696.50 KB
Description	Low-Noise Low-Dropout Linear Regulator
Datasheet	TPL910A-3PEAK.pdf

TPL910A Product details

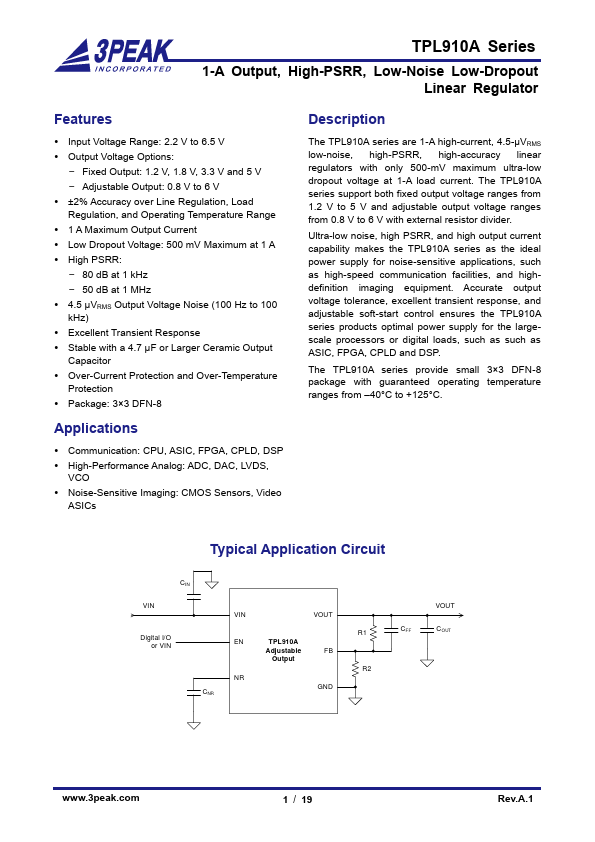

Description

The TPL910A series are 1-A high-current, 4.5-μVRMS low-noise, high-PSRR, high-accuracy linear regulators with only 500-mV maximum ultra-low dropout voltage at 1-A load current.

Features

Input Voltage Range: 2.2 V to 6.5 V.
Output Voltage Options:.
Fixed Output: 1.2 V, 1.8 V, 3.3 V and 5 V.
Adjustable Output: 0.8 V to 6 V.
±2% Accuracy over Line Regulation, Load Regulation, and Operating Temperature Range.
1 A Maximum Output Current.
Low Dropout Voltage: 500 mV Maximum at 1 A.
High PSRR:.
80 dB at 1 kHz.
50 dB at 1 MHz.
4.5 μVRMS Output Voltage Noise (100 Hz to 100 kHz).
Excellent Transient Response.
