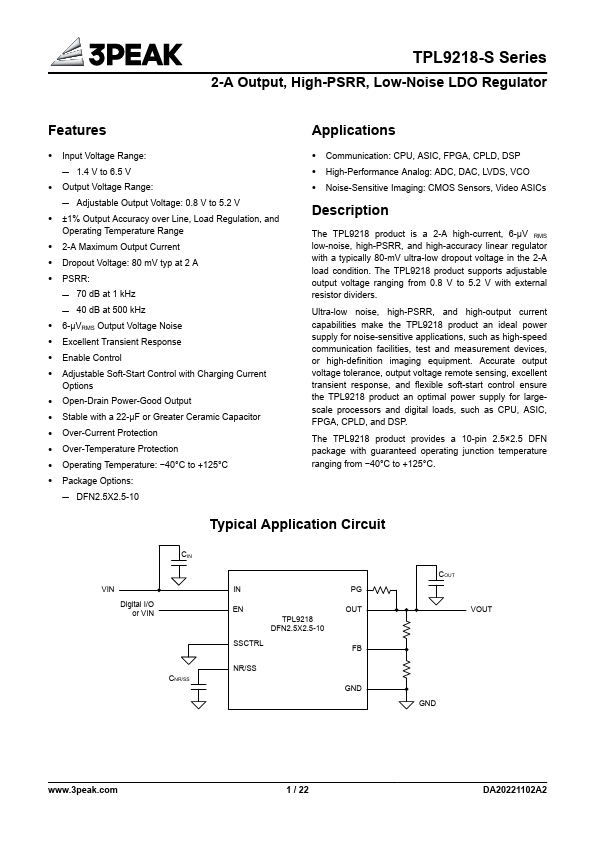

TPL9218 Low-Noise LDO Regulator

The TPL9218 product is a 2-A high-current, 6-μV RMS low-noise, high-PSRR, and high-accuracy linear regulator with a typically 80-mV ultra-low dropout voltage in the 2-A load condition. The TPL9218 product supports adjustable output voltage ranging from 0.8 V to 5.2 V with external resistor dividers..

TPL9218 Features

* Applications

* Input Voltage Range:

* 1.4 V to 6.5 V

* Output Voltage Range:

* Adjustable Output Voltage: 0.8 V to 5.2 V

* ±1% Output Accuracy over Line, Load Regulation, and Operating Temperature Range

* 2-A Maximum Output Current

* Dropout

TPL9218-S-3PEAK.pdf

TPL9218 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPL9218, TPL9218-S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPL9218, TPL9218-S

Manufacturer:

3PEAK

File Size:

1.53 MB

Description:

Low-noise ldo regulator.

Note:

This datasheet PDF includes multiple part numbers: TPL9218, TPL9218-S.
Please refer to the document for exact specifications by model.
