TPP60508 - 60V 5A Non-Synchronous Step-Down DC/DC Converter

3PEAK

📥 Download Datasheet

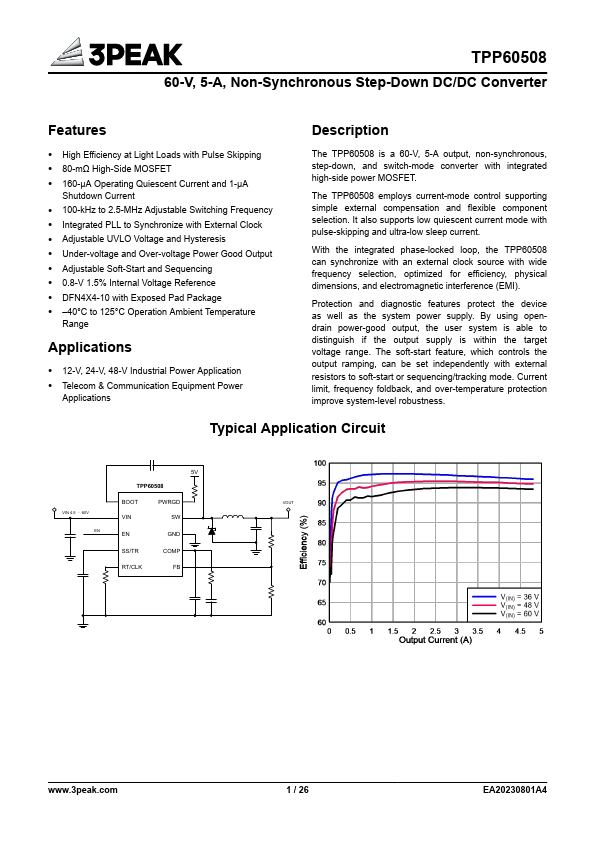

TPP60508 Datasheet Preview — Preview of TPP60508 PDF

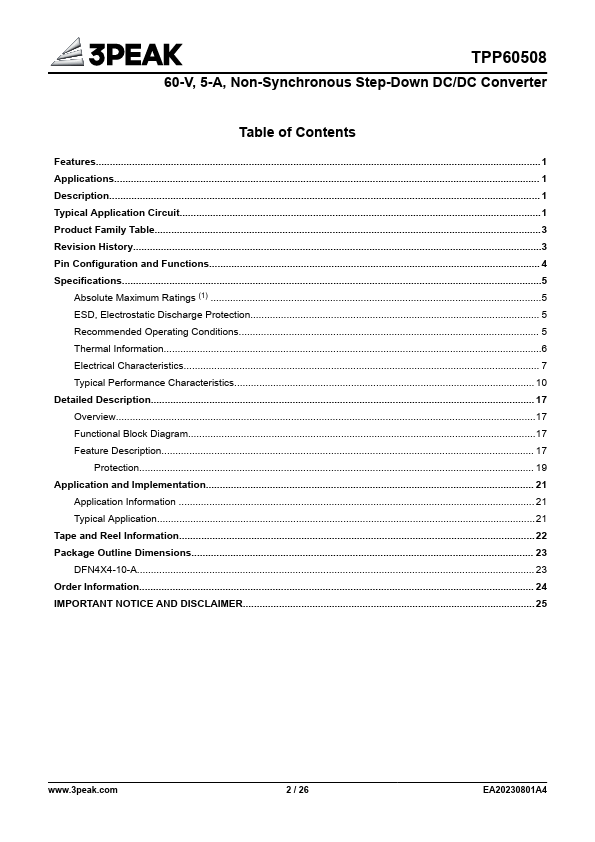

datasheet Preview Page 2

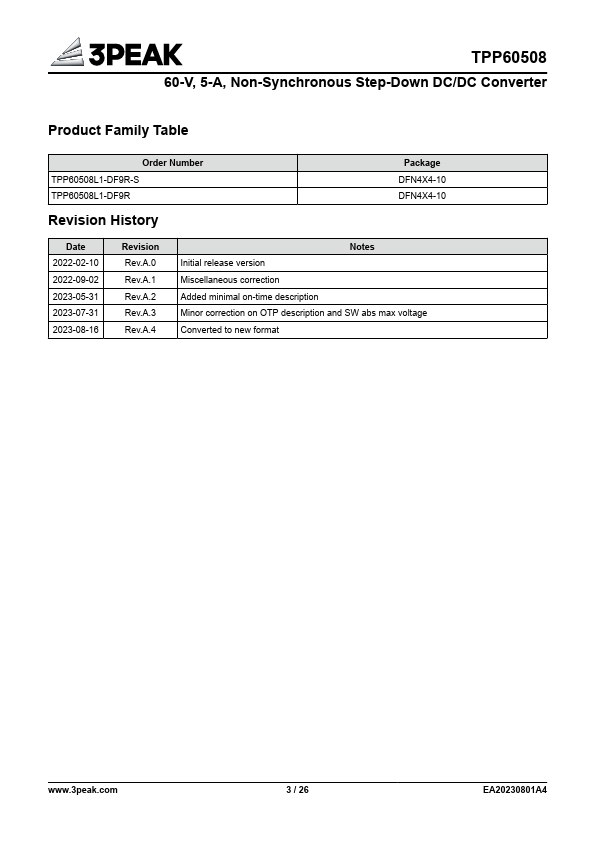

datasheet Preview Page 3

Datasheet Details

Part number	TPP60508
Manufacturer	3PEAK
File Size	1.81 MB
Description	60V 5A Non-Synchronous Step-Down DC/DC Converter
Datasheet	TPP60508-3PEAK.pdf

TPP60508 Product details

Description

The TPP60508 is a 60-V, 5-A output, non-synchronous, step-down, and switch-mode converter with integrated high-side power MOSFET.

Features

High Efficiency at Light Loads with Pulse Skipping.
80-mΩ High-Side MOSFET.
160-μA Operating Quiescent Current and 1-μA Shutdown Current.
100-kHz to 2.5-MHz Adjustable Switching Frequency.
Integrated PLL to Synchronize with External Clock.
Adjustable UVLO Voltage and Hysteresis.
Under-voltage and Over-voltage Power Good Output.
Adjustable Soft-Start and Sequencing.
0.8-V 1.5% Internal Voltage Reference.
DF.
