TPW4053 12V General Purpose Analog Switch

3PEAK

Description

.
The TPW4053 is a three single-pole dual-throw analog switch (SPDT) suitable for use in analog or digital multiplexer/demultiplexer applications.

📥 Download Datasheet

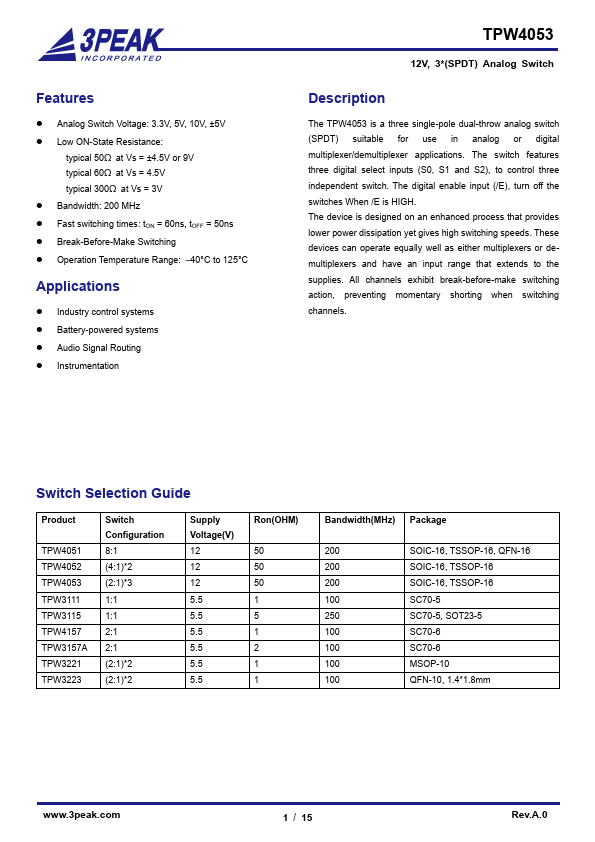

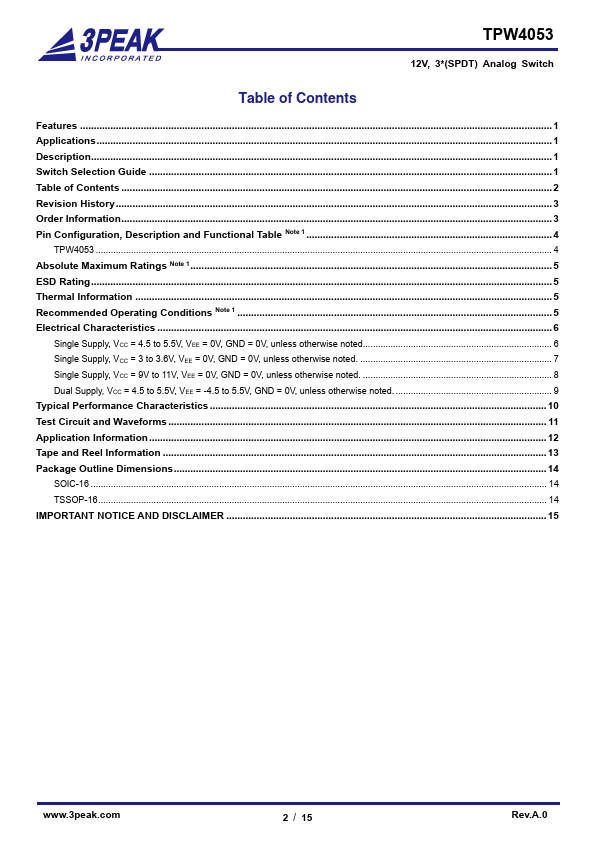

TPW4053 Datasheet Preview — Preview of TPW4053 PDF

Datasheet Specifications

Part number: TPW4053
Manufacturer: 3PEAK
File Size: 746.44 KB
Datasheet: TPW4053-3PEAK.pdf
Description: 12V General Purpose Analog Switch

Features

* Analog Switch Voltage: 3.3V, 5V, 10V, ±5V
* Low ON-State Resistance: typical 50Ω at Vs = ±4.5V or 9V typical 60Ω at Vs = 4.5V typical 300Ω at Vs = 3V
* Bandwidth: 200 MHz
* Fast switching times: tON = 60ns, tOFF = 50ns
* Break-Before-Make Switching
* Operation Temperature R

Applications

* Industry control systems
* Battery-powered systems
* Audio Signal Routing
* Instrumentation TPW4053 12V, 3
