TPW4157 - Low Voltage SPST Analog Switch

3PEAK

📥 Download Datasheet

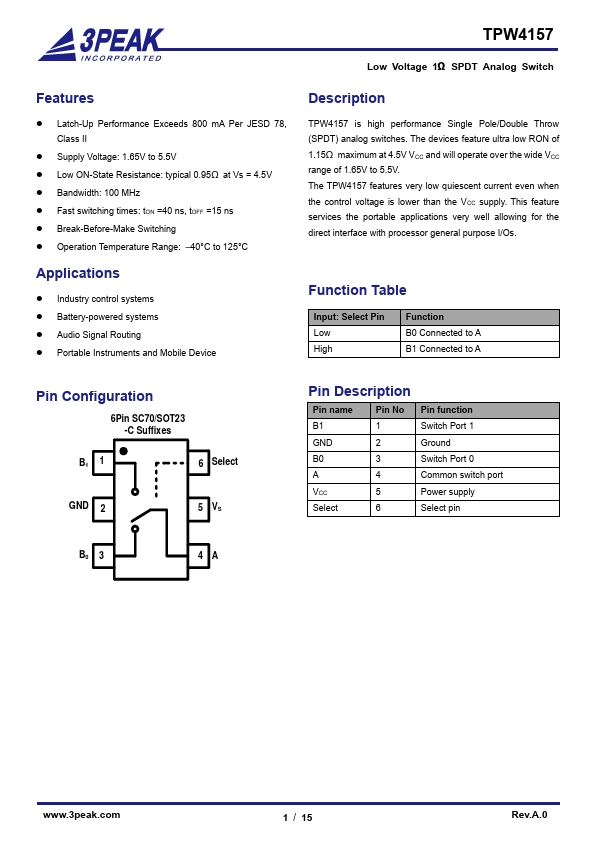

TPW4157 Datasheet Preview — Preview of TPW4157 PDF

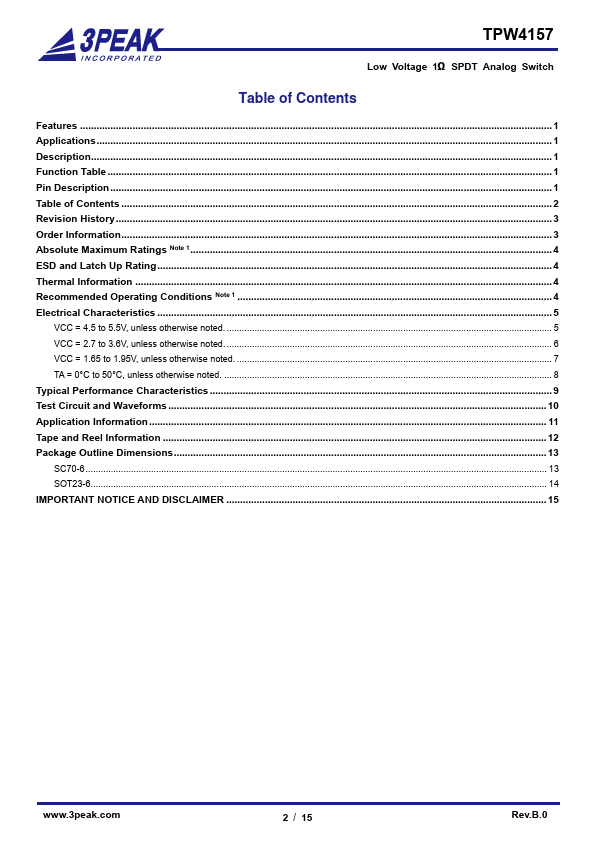

datasheet Preview Page 2

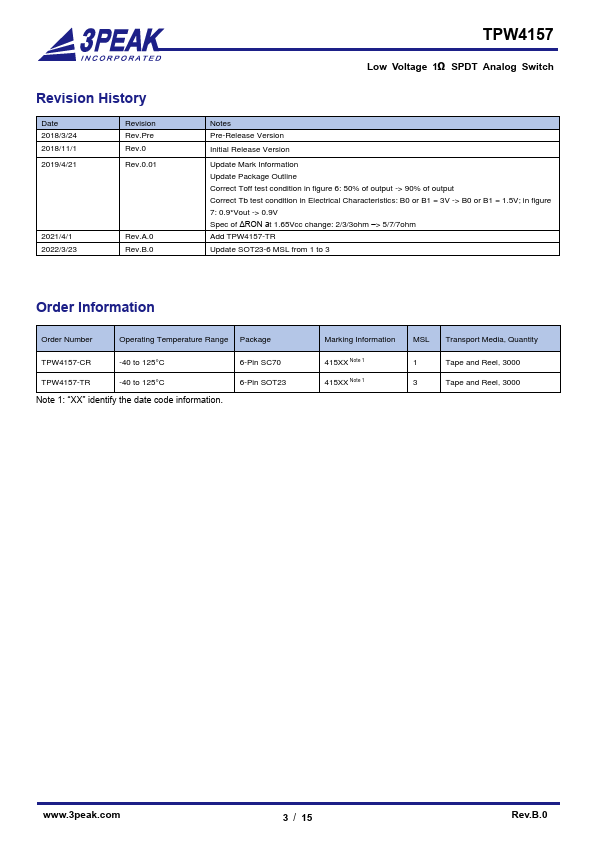

datasheet Preview Page 3

Datasheet Details

Part number	TPW4157
Manufacturer	3PEAK
File Size	614.10 KB
Description	Low Voltage SPST Analog Switch
Datasheet	TPW4157-3PEAK.pdf

TPW4157 Product details

Description

TPW4157 is high performance Single Pole/Double Throw (SPDT) analog switches.

Features

Latch-Up Performance Exceeds 800 mA Per JESD 78, Class II.
Supply Voltage: 1.65V to 5.5V.
Low ON-State Resistance: typical 0.95Ω at Vs = 4.5V.
Bandwidth: 100 MHz.
Fast switching times: tON =40 ns, tOFF =15 ns.
Break-Before-Make Switching.
Operation Temperature Range:.
40°C to 125°C.
