TPW4066 Analog Switch

3PEAK

Description

.
The TPW4066 is a four channel single-pole single-throw analog switch (SPDT) suitable for use in analog or digital multiplexer/demultiplexer applicatio.

📥 Download Datasheet

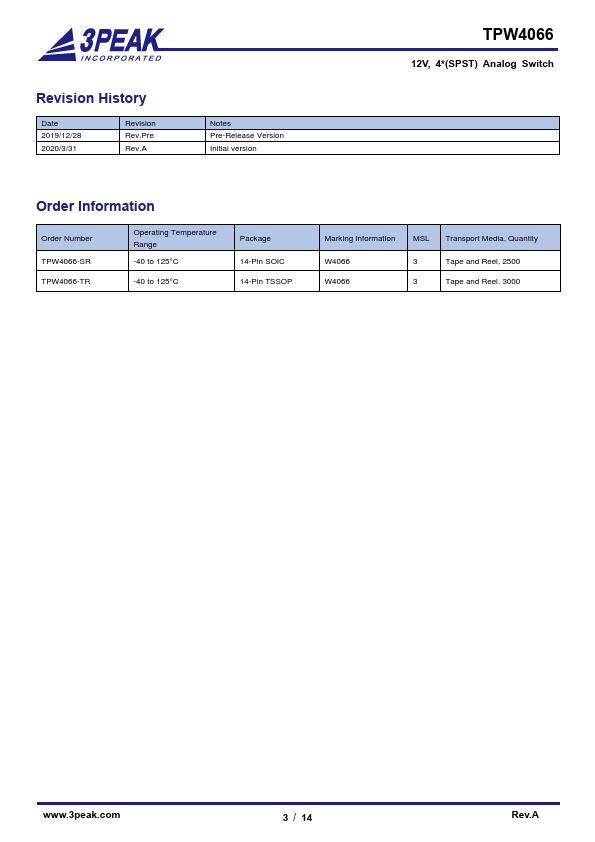

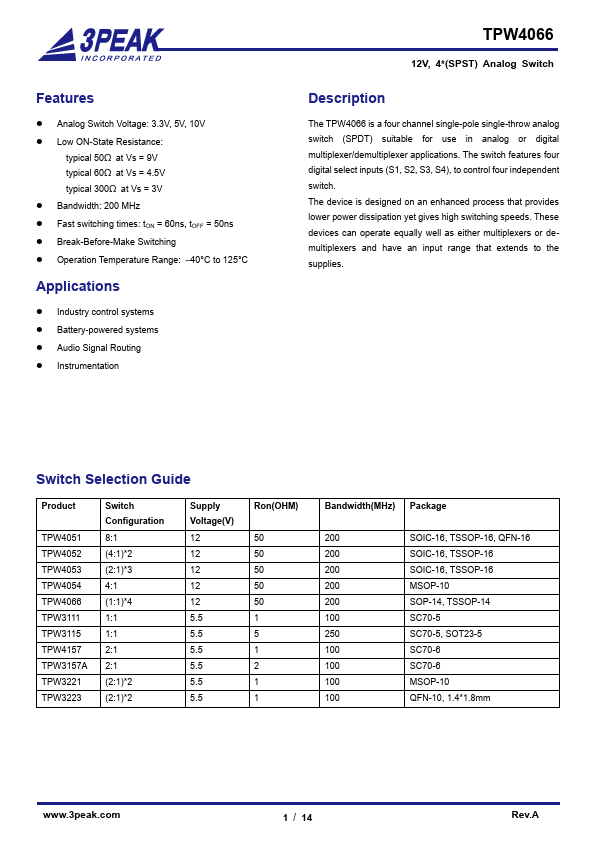

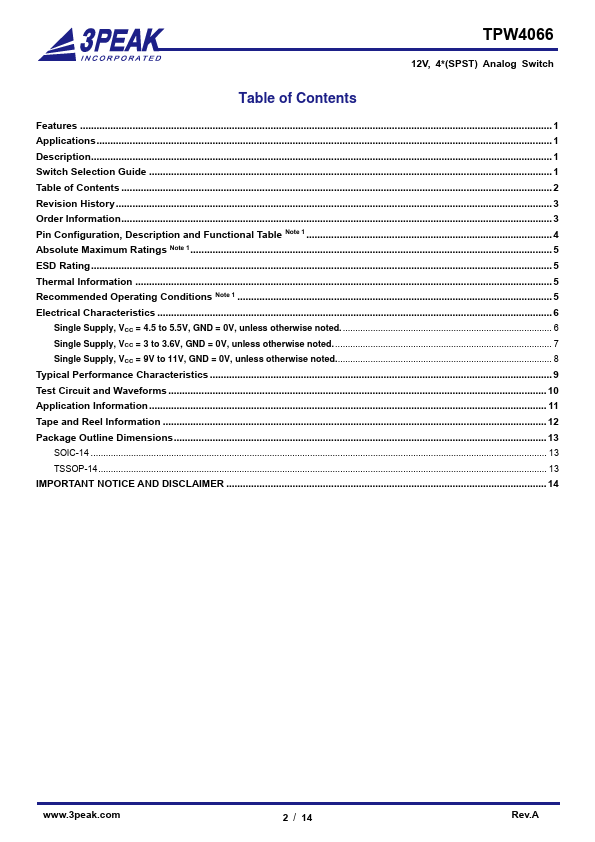

TPW4066 Datasheet Preview — Preview of TPW4066 PDF

Datasheet Specifications

Part number: TPW4066
Manufacturer: 3PEAK
File Size: 705.56 KB
Datasheet: TPW4066-3PEAK.pdf
Description: Analog Switch

Features

* Analog Switch Voltage: 3.3V, 5V, 10V
* Low ON-State Resistance: typical 50Ω at Vs = 9V typical 60Ω at Vs = 4.5V typical 300Ω at Vs = 3V
* Bandwidth: 200 MHz
* Fast switching times: tON = 60ns, tOFF = 50ns
* Break-Before-Make Switching
* Operation Temperature Range:

Applications

* Industry control systems
* Battery-powered systems
* Audio Signal Routing
* Instrumentation TPW4066 12V, 4
