AAT2554 - Total Power Solution

AAT2554 Description

Total Power Solution for Portable Applications General .
The AAT2554 is a fully integrated 500mA battery charger, a 250mA step-down converter, and a 300mA low dropout (LDO) linear regulator.

AAT2554 Features

* the device offers over-voltage, current limit, and thermal protection. AAT2554 Features
* SystemPower™
* The step-down converter is a highly integrated converter operating at a 1.5MHz switching frequency, minimizing the size of external components while keeping switc

📥 Download Datasheet

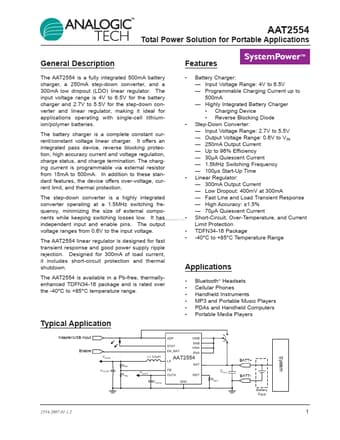

Preview of AAT2554 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT2554
Manufacturer
AAT
File Size
902.09 KB
Datasheet
AAT2554_AAT.pdf
Description
Total Power Solution
