AX7 - POWER OPTIMIZED XO

ABRACON

📥 Download Datasheet

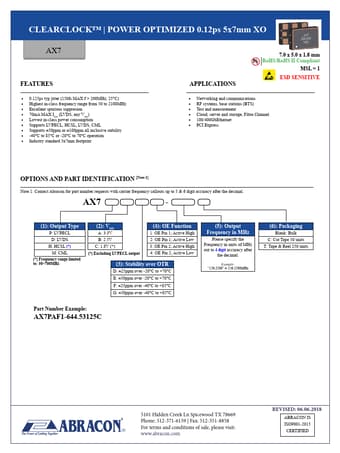

AX7 Datasheet Preview — Preview of AX7 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AX7
Manufacturer	ABRACON
File Size	4.48 MB
Description	POWER OPTIMIZED XO
Datasheet	AX7-ABRACON.pdf

AX7 Product details

Features

0.125ps typ jitter (150fs MAX f > 200MHz, 25°C).
Highest in-class frequency range from 50 to 2100MHz.
Excellent spurious suppresion.
70mA MAX IDD (LVDS, any VDD) Lowest in-class power consumption.
Supports LVPECL, HCSL, LVDS, CML.
Supports ±50ppm or ±100ppm all inclusive stability.
-40°C to 85°C or -20°C to 70°C operation.
Industry standard 5x7mm footprint.
