AX7812, AX7805 Datasheet - AXElite

AX7812 1A 3-Terminal Positive Voltage Regulator

The AX7805/09/12 series are three terminal positive voltage regulators designed for a wide variety of applications including local, on-card regulation. The AX7805/09/12 is complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immun.

AX7812 Features

* - Output Current up to 1A - Fixed Output Voltages of 5V, 9V and 12V - Output Voltage Accuracy of ±4% over the Full Temperature Range - Internal Short Circuit Current Limiting - Internal Thermal Overload Protection - Output Transistor Safe-area Protection - Low Load Regulation - Stable Performance in

AX7805_AXElite.pdf

This datasheet PDF includes multiple part numbers: AX7812, AX7805. Please refer to the document for exact specifications by model.

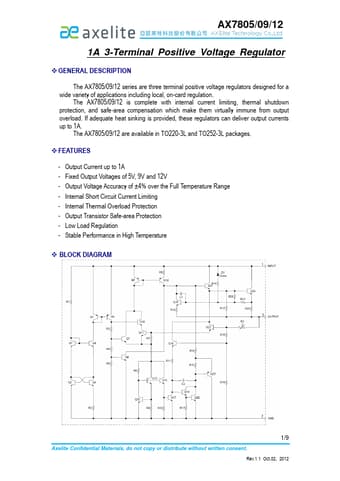

AX7812 Datasheet Preview Page 2 AX7812 Datasheet Preview Page 3
