AX7805

1A 3-Terminal Positive Voltage Regulator

AX7805 Features

* - Output Current up to 1A - Fixed Output Voltages of 5V, 9V and 12V - Output Voltage Accuracy of ±4% over the Full Temperature Range - Internal Short Circuit Current Limiting - Internal Thermal Overload Protection - Output Transistor Safe-area Protection - Low Load Regulation - Stable Performance in

AX7805 General Description

The AX7805/09/12 series are three terminal positive voltage regulators designed for a wide variety of applications including local, on-card regulation. The AX7805/09/12 is complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immun.

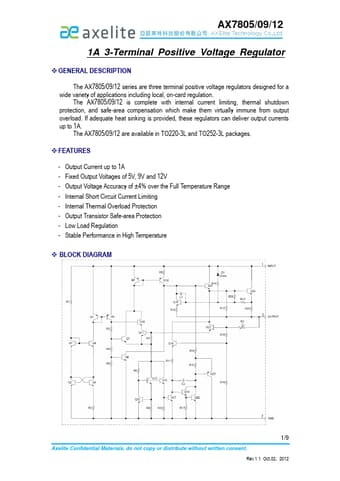

AX7805 Datasheet (443.90 KB)

Preview of AX7805 PDF

Datasheet Details

Part number:

AX7805

Manufacturer:

AXElite

File Size:

443.90 KB

Description:

1a 3-terminal positive voltage regulator.
